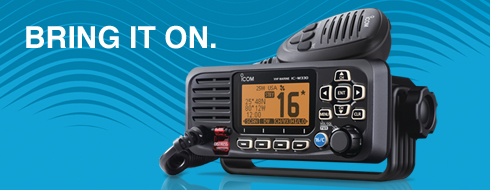

IC-M330G VHF Marine Fixed Mount
Top Performing Compact VHF
The M330 series gives you the same performance and feature set as the M324 series, but now within a smaller package to fit in tight spaces. Priced at a great value the M330 series still includes the exclusive AquaQuake™ draining feature, 25 watts of power, IPX7 Waterproof rating, scan/select scan and Icom’s exclusive user interface for ease of use.
|
Output Power:
|
|
25W |
|
GPS:
|
|
Supplied external GPS antenna (G version) |
|
Waterproof Rating:
|
|
IPX7 |
|
Versions:
|
|

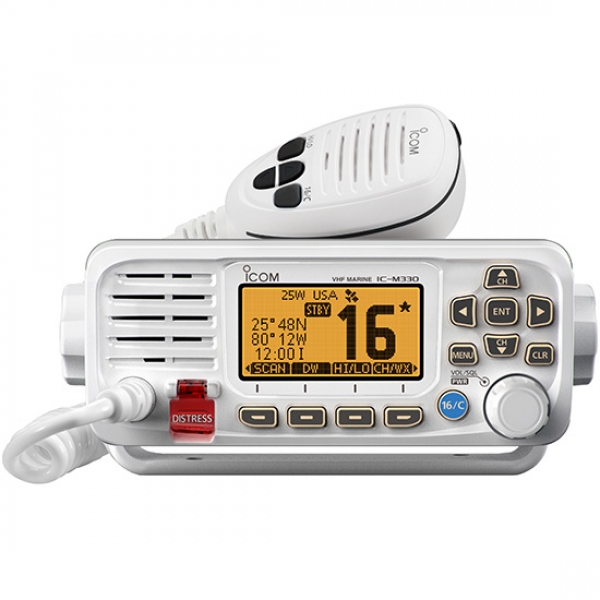

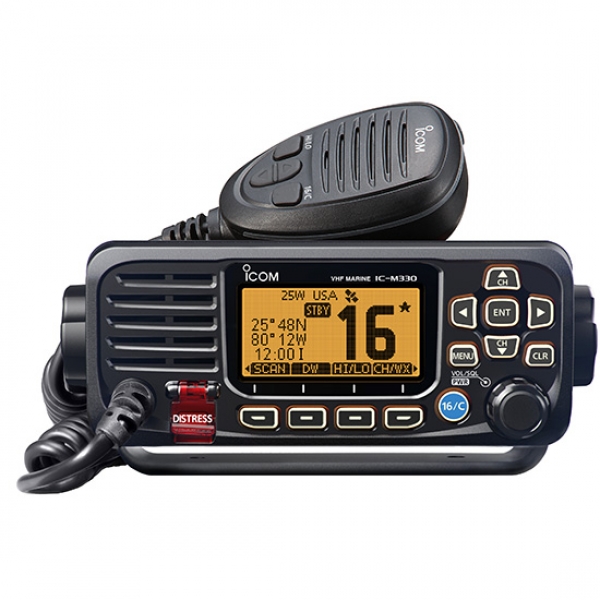

Black or Super White
With or without GPS |
GPS Capability
The M330G includes a GPS receiver and an easy to install external GPS puck antenna for better accuracy and performance. The small compact GPS puck antenna provides your location, bearing and speed by using information from GPS, GLONASS and SBAS. This information is used for DSC (Digital Selective Calling) calls. Hook up the GPS puck antenna for the most accurate GPS and DSC functionality to work.
Compact and Easy to Use
The M330’s small size makes it easy to install into vessels with limited space. The dot-matrix display is clear and easy to read. A combination of the directional keypad and soft keys provides simple, smooth operation. Most used functions are assigned to soft keys for quick one push function access.
Additional Features
- AquaQuake™ draining function
- Built-in Class D DSC with a CH70 dedicated receiver
- Common NMEA interface for external GPS/NAV connection
- Tag scan and favorite channel functions
- Dual/tri-watch function for monitoring CH16 and/or call channel
- Priority scan function
- Display and keypad backlighting
- Weather channel with weather alert
- 3-digit or 4-digit channel display selectable
Specifications
| General |
Frequency Range
Tx
Rx
Ch. 70 |
156.025–161.600MHz
156.050–163.275MHz
156.525MHz |
| Usable channels |
USA, CAN, INT, WX channels |
| Type of emission |
16K0G3E (FM)
16KOG2B (DSC) |
| Power supply requirement |
13.8V DC nominal (11.7–15.9V DC) |
Current drain (at 13.8V DC)
Tx 25W output
Rx AF max. |
5A
1A |
|
Operating temperature range
|
-20°C to +60°C; -4°F to +140°F
|
| Antenna Impedance |
50Ω (SO-239) |
Dimensions (W×H×D)
(Projections not included) |
156.5 × 66.5 × 110.1 mm;
6.2 × 2.6 × 4.3 in |
| Weight (approx.) |
730g; 1.6lb |
NMEA formats
In
Out |
RMC, GGA, GNS, GLL, VTG
DSC, DSE, RMC, GSA, GSV |
| Transmitter |
| Output power (at 13.8V DC) |
25W, 1W
|
| Max. frequency deviation |
± 5 KHz |
| Frequency tolerance |
±5 ppm |
| Spurious emissions |
Less than –70dBc (High)
Less than –56dBc (Low) |
| Receiver |
Sensitivity
Main
DSC |
–13dBμ typ. (12dB SINAD)
–5dBμ emf typ. (1% BER) |
| Squelch sensitivity |
Less than –10dBμ |
Adjacent channel selectivity
Main
DSC |
More than 70dB
More than 73dBμ emf (1% BER) |
Spurious response
Main
DSC |
More than 70dB
More than 73dBμ emf (1% BER) |
Intermodulation
Main
DSC |
More than 70dB
More than 68dBμ emf (1% BER) |
| Hum and noise |
More than 40dB |
Audio output power
(at 10% distortion, 4Ω load) |
4.5W typical |
Measurements made in accordance with TIA/EIA-603. All stated specifications are subject to change without notice or obligation.
| Applicable IP Rating |
| Ingress Protection Standard |
| Water |
IPX7 (Waterproof protection) |
Measurements made in accordance with TIA/EIA-603. All stated specifications are subject to change without notice or obligation.
Supplied Accessories
- Hand microphone, HM-235B/SW
- DC power cable
- Mounting bracket kit
- GPS antenna (5 m; 16.4 ft cable)*
*Only for the IC-M330G.
