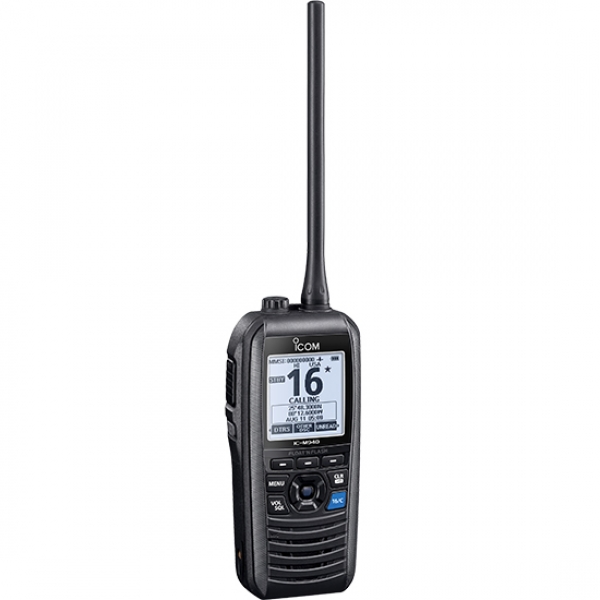

IC-M94D VHF Handheld
AIS Handheld for the Serious Boater – Bring it On
Icom’s Class-H DSC VHF transceiver, the M94D is the world’s first handheld to possess the power of AIS. A class-leading 1500 mW speaker and ocean-conscious features, the M94D is perfect for small boats and leisure craft looking to stay safe and informed on the ocean.
|
Output Power:
|
|
6W |
|
Battery Life:
|
|
2400 mAh Li-ion battery, up to 10 hours
Typical operation; Tx:Rx:Stand-by duty ratio = 5:5:90 |
|
Waterproof Rating:
|
|
IPX7 |
|
GPS:
|
|
Built-in |
|
Floats:
|
|
Yes |

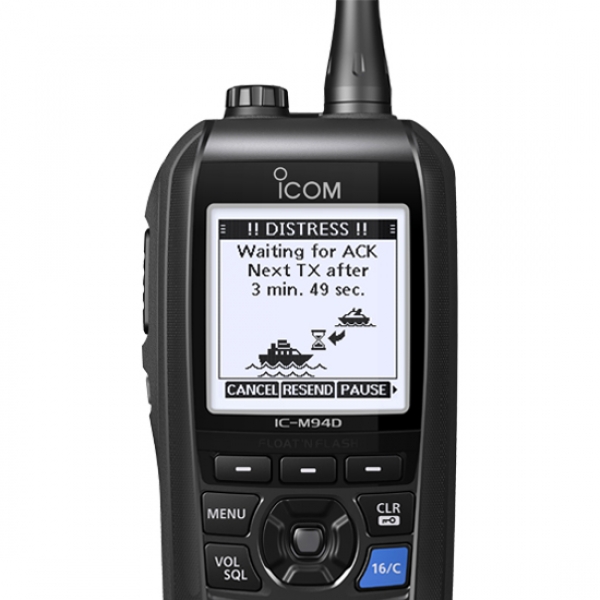

AIS Receiver with DSC

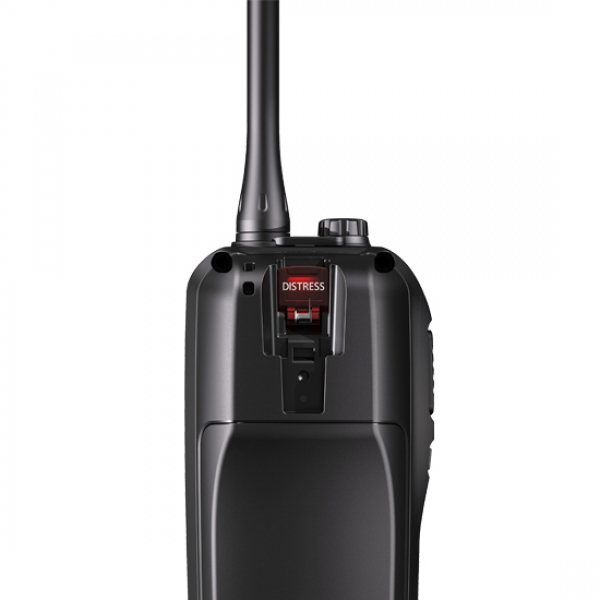

A combination of the Automatic Identification System (AIS) and Distress Signal Calling (DSC) provides users with peace of mind when out on the open sea. With the AIS target call function, users can set up DSC individual calls. Easy access to distress call button on rear panel button.

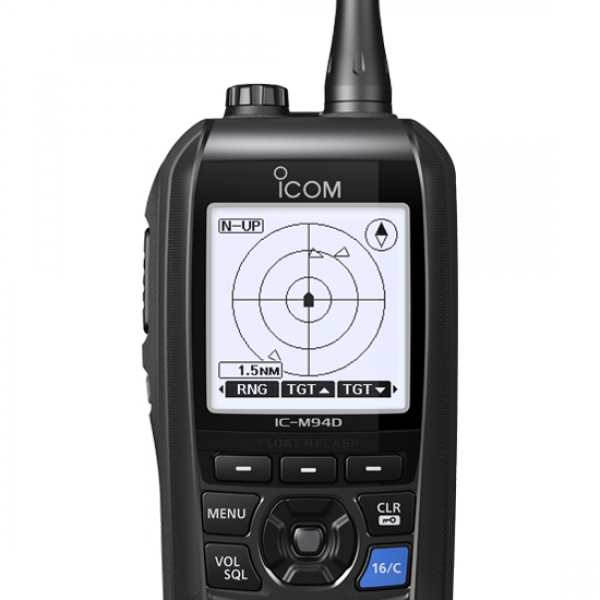

Simplified Navigation System
Access vessel traffic information and plot up to 50 waypoints for fishing spots or Man-Overboard (MOB) waypoints. The M94D's back-lit screen is dimmable for easy readability under any lighting condition. The large screen allows for easy-to-read icons and text.
Ocean-Ready Features
Ready for the open seas. The M94D's water-resistance measures make it ready to operate under any weather condition.
Float’n Flash
The M94D falls into water, the radio floats and automatically flashes, even when it is off. The LCD screen flashes to help show the radio’s position to easily retrieve.
AquaQuake™
If the M94D decides to take a swim, the AquaQuake draining function removes water from the grill by vibrating at a particular frequency, preventing audio degradation.
Additional Features
- Active Noise Cancelling technology
- Weather channel
- Dualwatch and Tri-watch functions
- Favorite channel function
- Supports 4-digit channels
Specifications
| General |
Frequency Range
Tx
Rx
DSC
AIS (Rx) |
156.025–157.425 MHz
156.050–163.275 MHz
156.525 MHz
162.025 MHz |
| Usable channel groups |
INT, USA, CAN, WX channels |
| Type of emission |
16K0G3E (FM), 16KOG2B (DSC), 16K0GXW (AIS) |
Current drain (at 7.4V DC)
Tx (6W / 1W output)
Rx (Inter SP/Exter SP Max. audio) |
1500 mA / 700 mA (approx.)
700 mA / 350 mA (approx.) |
|
Operating temperature range
|
-20°C to +60°C; -4°F to +140°F
|
| Antenna Impedance |
50Ω |
Dimensions (W×H×D)
(Projections not included) |
60.9 × 145.8 × 43.8 mm;
2.4 × 5.7 × 1.7 in |
| Weight (approx.) |
357 g; 12.6 oz
(With BP-306, antenna, MB-133) |
| Transmitter |
| Output power (Hi/Low) |
6W / 1W
|
| Max. frequency deviation |
±5 kHz |
| Frequency stability |
±10ppm |
| Spurious emissions |
–68 dBc typ. |
| Receiver |
Sensitivity (at 12 dB SINAD)
DSC receiver (at 1% BER)
AIS receiver (at 20% PER) |
0.25 µV typical
0.56 µV emf typical
–107 dBm |
| Squelch sensitivity (Threshold) |
0.25 µV typ. |
Adjacent Channel Selectivity
DSC receiver (at 1% BER) |
70 dB typical
73 dBμ emf typical |
Spurious response
DSC receiver (at 1% BER) |
70 dB typical
73 dBμ emf typical |
Intermodulation
DSC receiver (at 1% BER) |
70 dB typical
68 dBμ emf typical |
| Hum and noise ratio |
40 dB typical |
Audio output power (at 10% distortion)
Internal speaker
External speaker |
1500 mW typical (8Ω load)
350 mW typical (8Ω load) |
Measurements made in accordance with TIA/EIA-603. All stated specifications are subject to change without notice or obligation.
Applicable U.S. Military Specifications & IP Rating
| Standard |
MIL 810 G |
| Method |
Proc |
| Low Pressure |
500.5 |
I, II |
| High Temp. |
501.5 |
I, II |
| Low Temp. |
502.5 |
I, II |
| Temp. Shock |
503.5 |
I-C |
| Solar Radiation |
505.5 |
I |
| Rain Blowing/Drip |
506.5 |
I, III |
| Humidity |
507.5 |
II |
| Salt Fog |
509.5 |
– |
| Dust Blowing |
510.5 |
I |
| Immersion |
512.5 |
I |
| Vibration |
514.6 |
I |
| Shock |
516.6 |
I, IV |
Also meets equivalent MIL-STD-810-C, -D, -E and -F.
| Ingress Protection Standard |
| Water |
IPX7 (Submersible protection) |
Supplied Accessories
- Antenna, FA-SC59V
- AC adapter, BC-123SA
- Battery charger, BC-251
- Battery pack, BP-306
- Cigarette lighter cable, CP-25H
- Belt clip, MB-133
- Hand strap
