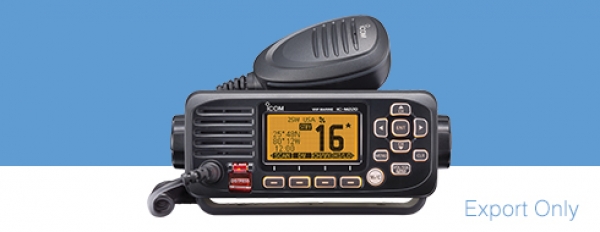

IC-M200 VHF Marine Transceiver
VHF Fixed Mount – Export Only
The M200 gives you the same Icom performance and reliability boaters expect in a fixed mount but at a great value. This small compact unit includes a large easy to read LCD plus is IPX7 rated and comes with the AquaQuake draining function for optimal audio. This is a perfect radio for boats that need a basic radio or boats with limited space.
|
Output Power:
|
|
25W |
|
Waterproof Rating:
|
|
IPX7 |
Features
- Dualwatch and tri-watch function
- Favorite channel function
- Built-in ultra-stable TCXO for reliable frequency stability
- Channel operation with the hand microphone, HM-164B, in your hand
- Instant-access button for Channel 16 and call channel
- Priority scan and normal scan
- Built-in low voltage indicator
- Keypad backlighting
Specifications
| General |
Frequency Range
Tx
Rx |
156.025–162000MHz
156.025–162.025MHz |
| Usable channels |
INT, USA, CAN channels |
| Type of emission |
16K0G3E (FM) |
| Power supply voltage |
13.8V DC nominal
1.5A (Maximum) |
Current drain
Tx (at 25W output)
Rx (Maximum audio) |
5.5A (Maximum)
200mA |
| Operating temperature range |
–20°C to +60°C; –4°F to +140°F |
| Antenna Impedance |
50Ω |
Dimensions (W×H×D)
(Projections not included) |
153×67×133 mm;
6.0×2.6×5.2 inch |
| Weight (approximately) |
790g; 1.7lb |
| Transmitter |
| Output power (Hi/Mid/Low) |
25W (High power)
1W (Low power) |
| Modulation |
Variable reactance frequency
modulation |
| Max. frequency deviation |
±5kHz |
| Frequency stability |
±5ppm |
| Spurious emissions |
Less than –70dBc (High power)
Less than –56dBc (Low power) |
| Adjacent channel power |
More than 70dB |
| Audio harmonic distortion |
Less than 10% (at 60% dev.) |
| Residual modulation |
More than 40dB |
| Receiver |
| Intermediate frequency
1st
2nd
|
21.7MHz
450kHz |
| Sensitivity |
–14dBμ typ. (at 12dB SINAD) |
| Squelch sensitivity |
Less than –10dBμ |
| Adjacent Channel Selectivity |
75dB typical |
| Spurious response |
75dB typical |
| Intermodulation |
75dB typical |
| Hum and noise ratio |
More than 40dB |
| Audio output power |
4.5W typical
(at 10% distortion with a 4Ω load) |
Applicable U.S. Military Standards
| Standard |
MIL 810 G |
| Method |
Proc |
| Temp Shock |
503.5 |
I |
| Rain Blowing/Drip |
506.5 |
I, III |
| Humidity |
507.5 |
– |
| Salt Fog |
509.5 |
– |
| Vibration |
514.6 |
I |
| Shock |
516.6 |
II |
Also meets equivalent MIL-STD-810-C, -D, -E and -F.
Applicable IP Rating
| Ingress Protection Standard |
| Water |
IPX7 (Waterproof protection) |
