IC-F3261 Analog, LTR®, IDAS Portables VHF/UHF

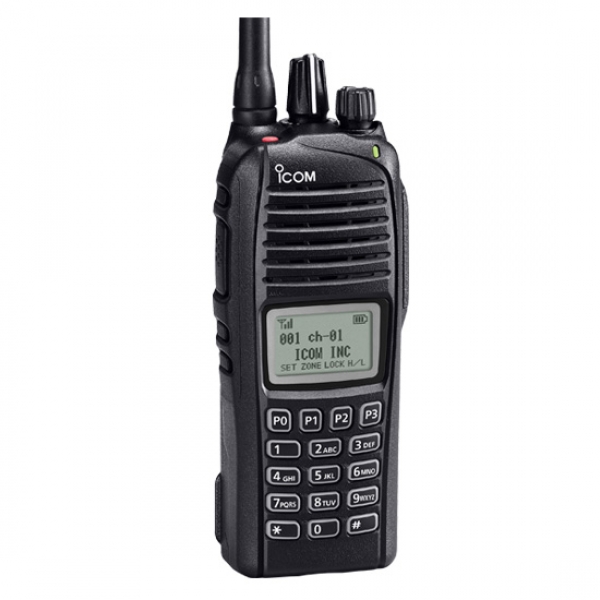

Enhanced IDAS™ Digital Handheld with Built-in GPS and Waterproof Protection
The F3261 is a higher-end level radio that introduces the power of built-in GPS functions to send data to other IDAS radios or dispatch stations. Along with loud audio, the radio is packed with standard functions such as status message and short data messaging.
|
Channels:
|
|
512/128 zones |
|
Output Power:
|
|
5W |
|
Frequencies:
|
|
136-174 VHF/400-470, 450-512 UHF |
|
Digital Conventional:
|
|
IDAS built-in |
|
Digital Trunking:
|
|
Built-in Type D single-site and multi-site |
|
Programmable Keys:
|
|
4 or full key |
|
Waterproof Rating:
|
|
IP67 |
|
Versions:
|
|
Display with simple keypad / Display with full DTMF keypad |
IDAS™ Digital Mode Features
- Individual/group call
- Talk back and call mode selection
- SDM (Short Data Message)
- Status message
- GPS
- Radio check
- Stun, kill and revive
- Call alert
- Remote monitor
- Emergency
- Digital voice scrambler
- Block decode
- RAN (Radio Access Number)
800mW Audio Output Power
The built-in BTL amplifier doubles the audio output power and the large 40mm speaker delivers loud audio to receive all calls under noisy environments. Even when using an optional speaker-microphone, the BTL amplifier output increases the audio output from the external accessory connector.
Analog FM Mode Features
- 2-Tone, 5-Tone, CTCSS and DTCS
- MDC 1200 compatible
- Inversion type voice scrambler
- Basic LTR™ trunking
Additional Features
- Large 2300 mAh (typ.) Lithium-Ion battery
- Mode dependent scan and priority scan
- Optional waterproof speaker-mic, HM-184
- Busy channel lockout, repeater lockout
- 14-pin accessory connector
- Escalating alarm
- Dot-matrix, multi-function display
- MIL-STD 810 G rugged construction
- DTMF autodial
- Power on password
- Low battery alert
- Time-out-timer
- Surveillance function
- Talk around function
Specifications
| General |
| Frequency Coverage |
F3261DT/DS
136–174MHz
F4261DT/DS
400-470MHz
450-512MHz
|
| Number of channels |
512 channels / 128 zones |
| Type of emission |
11K0F3E / 4K00F1E / F1D |
| Channel spacing |
12.5 / 6.25kHz |
| Power supply requirement |
7.5VDC nominal |
Current drain (approx.)
Tx High
Rx Max. audio/Standby |
F3261DT / DS
1.5A (at 5W)
600mA / 150mA
F4261DT / DS
1.8A (at 5W)
600mA / 140mA
|
| Antenna impedance |
50Ω |
| Operating temperature range |
–30°C to +60°C
–22°F to +140°F |
Dimensions (with BP-232N)
(projections are not included) |
54 (W) ×142.7 (H) ×39.5 (D) mm; 2.13x5.62x1.56in.
(With BP-232WP) |
| Weight (approx.) |
370g; 13.1oz (with BP-232WP) |
| Transmitter |
| Output power |
5W, 2W, 1W, (Hi, L2, L1) |
| Max. frequency deviation |
±2.5 kHz |
| Frequency stability |
±1.0ppm |
| Spurious emissions |
75dB min. |
| FM Hum and Noise |
40dB typ. |
| Audio harmonic distortion |
3% typ. (AF 1kHz 40% deviation) |
| FSK error |
5% max. |
| External microphone connector |
2.2kΩ (14-pin multi-connector) |
| Receiver |
| Sensitivity |
Analog: 0.25μV typ. (at 12dB SINAD)
Digital: 0.20μV typ. (at 5% BER) |
| Adjacent channel selectivity |
68dB typ. |
| Spurious response rejection |
70dB min. |
| Intermodulation rejection |
74dB typ. |
| Hum and noise ratio |
40db typ. |
| Audio output power |
800mW typ.
(at 5% distortion with an 8Ω load) |
| External speaker connector |
14-pin multi-connector/8Ω |
Measurements made in accordance with EIA/TIA-603. All stated specifications are subject to change without notice or obligation.
Applicable U.S. Military Specifications
| Standard |
MIL 810G |
| Method |
Proc |
| Low Pressure |
500.5 |
I, II |
| High Temp. |
501.5 |
I, II |
| Low Temp. |
502.5 |
I, II |
| Temp. Shock |
503.5 |
I-C |
| Solar Radiation |
505.5 |
I |
| Rain Blowing / Drip |
506.5 |
I, III |
| Humidity |
507.5 |
II |
| Salt Fog |
509.5 |
– |
| Dust Blowing |
510.5 |
I |
| Immersion |
512.5 |
I |
| Vibration |
514.6 |
I |
| Shock |
516.6 |
I, IV |
Also meets equivalent MIL-STD-810-C, -D, -E and -F.
| Ingress Protection Standard (F3261D/F4261D, BP-232WP and HM-184/H) |
| Dust & Water |
IP67 (Dust-tight and waterproof protection) |
Suppplied Accessories
- Antenna, FA-SC55V, FA-SC57U or FA-SC72U
- Battery back, BP-232WP
- Belt clip, MB-94R
