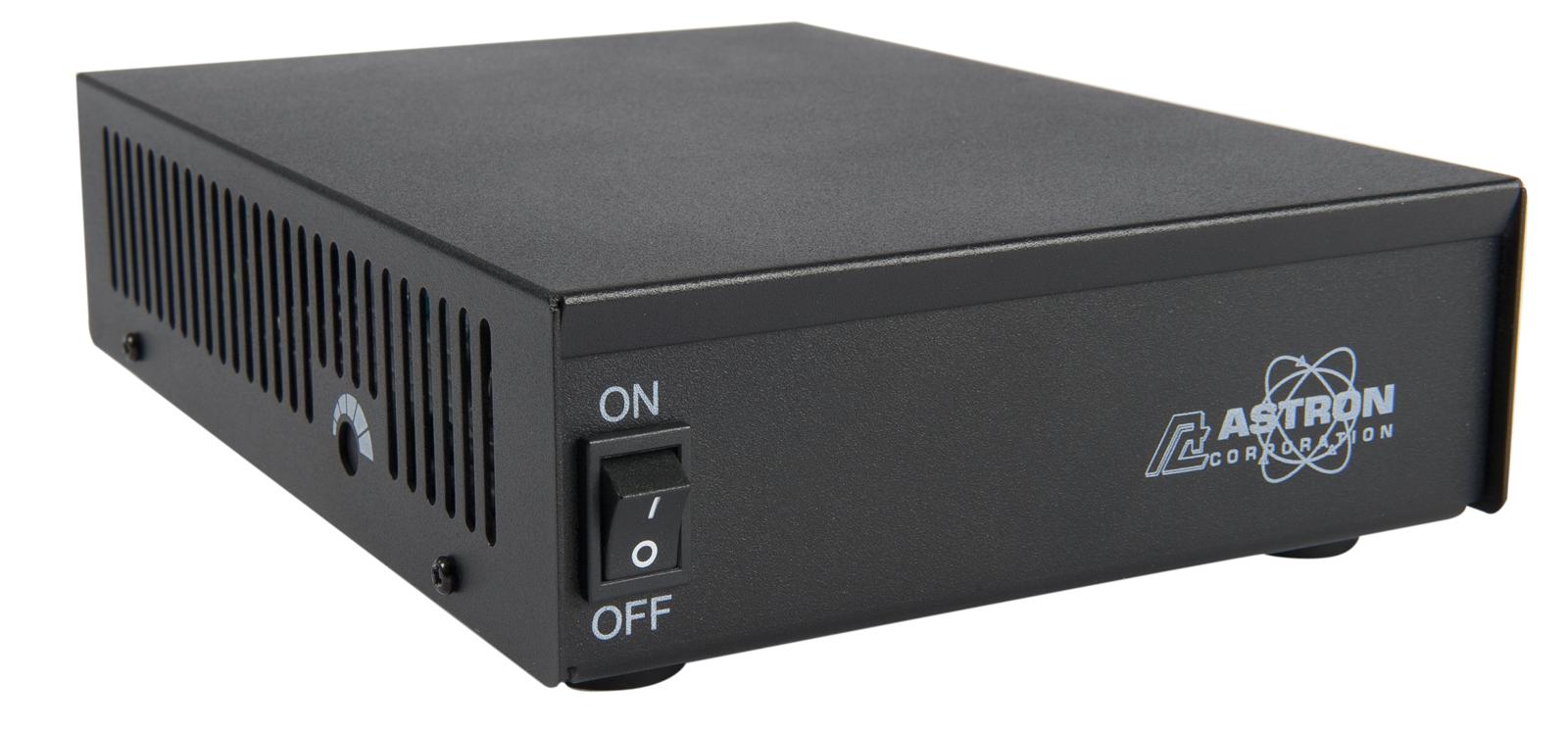

Astron SS Series Switching Power Supplies SS-10
Power Supply, SS Series, Switching, 10 A Peak At 13.8 Vdc, 115/230 Vac Input Int. Sw., Each
Brand: Astron Corporation
Manufacturer's Part Number: SS-10
Part Type: Power Supplies
Product Line: Astron SS Series Switching Power Supplies
Power Supply Type: Switching
Power Supply Continuous Output: 7.0A at 13.8 Vdc
Battery Backup: No
Power Supply Peak Output: 10A at 13.8 Vdc
Power Supply Voltage Adjustment Control: Side panel
Power Supply Voltage Adjustment Range: 12.2-14.5 Vdc
Power Supply Metering Type: None

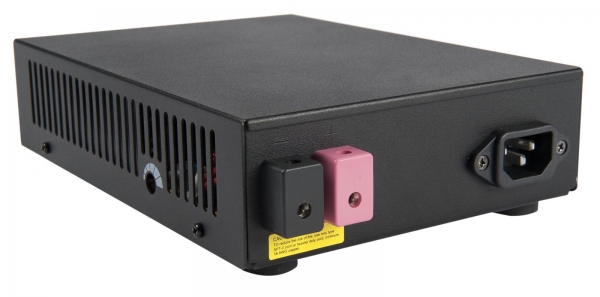

Power Supply High Current Terminal Location: Rear panel
Power Supply Low Current Terminal Location: None
Power Supply Lighter Socket: No
Power Supply Cooling Type: Fan
Power Supply Width: 6.000 in.
Power Supply Height: 2.375 in.
Power Supply Depth: 9.000 in.
Power Supply Weight: 3.20 lbs.
Quantity: Sold individually.
Application Notes: 115-220 Vac, 50/60 Hz automatic selection
Additional Information
Power Supply Input Voltage
115 Vac
220 Vac
Astron SS Series Switching Power Supplies
Astron Corporation SS Series Switching Power Supplies are highly regulated and designed for moderate to high power applications. While all of them make excellent general purpose power supplies, many of the SS Series supplies are designated to work with, and provide enclosures for, specific land mobile radios.
Delivering output from 7 to 40 continuous amps, depending on the model, these Astron supplies are manufactured with robust components for durability and long life. Built to exhibit RFI immunity, the power supplies include an EMI filter and are even RFI-resistant in the HF bands!
Their low-profile design and light weight make them perfect for portability or desktop use. All of these supplies provide a well-filtered 13.8 Vdc output for the operation of mobile or portable equipment from your 120/240 volt wall current. Why wait? Contact DX Engineering to get your Astron Corporation SS Series Switching Power Supplies today!
Check out these great features!
* Short circuit and over-voltage protection
* Automatic over-temperature shutdown
* Output current rated at continuous service
* Front panel USB charging ports and Powerpoles on some models
* Dual digital LED meters and front panel Powerpoles on the SS-25M-AP, SS-30M-AP and SS-50M-AP models
* Precision regulation of output voltage
* Some are designed to house specific LMR radios
* Fully EMI filtered
* Internal fuse access
* Switchable 120/240 V input voltage (auto-select with power cord change)
Brand: Astron Corporation
Manufacturer's Part Number: SS-10
Part Type: Power Supplies
Product Line: Astron SS Series Switching Power Supplies
Power Supply Type: Switching
Power Supply Continuous Output: 7.0A at 13.8 Vdc
Battery Backup: No
Power Supply Peak Output: 10A at 13.8 Vdc
Power Supply Voltage Adjustment Control: Side panel
Power Supply Voltage Adjustment Range: 12.2-14.5 Vdc
Power Supply Metering Type: None
Power Supply High Current Terminal Location: Rear panel
Power Supply Low Current Terminal Location: None
Power Supply Lighter Socket: No
Power Supply Cooling Type: Fan
Power Supply Width: 6.000 in.
Power Supply Height: 2.375 in.
Power Supply Depth: 9.000 in.
Power Supply Weight: 3.20 lbs.
Quantity: Sold individually.
Application Notes: 115-220 Vac, 50/60 Hz automatic selection
Additional Information
Power Supply Input Voltage
115 Vac
220 Vac
