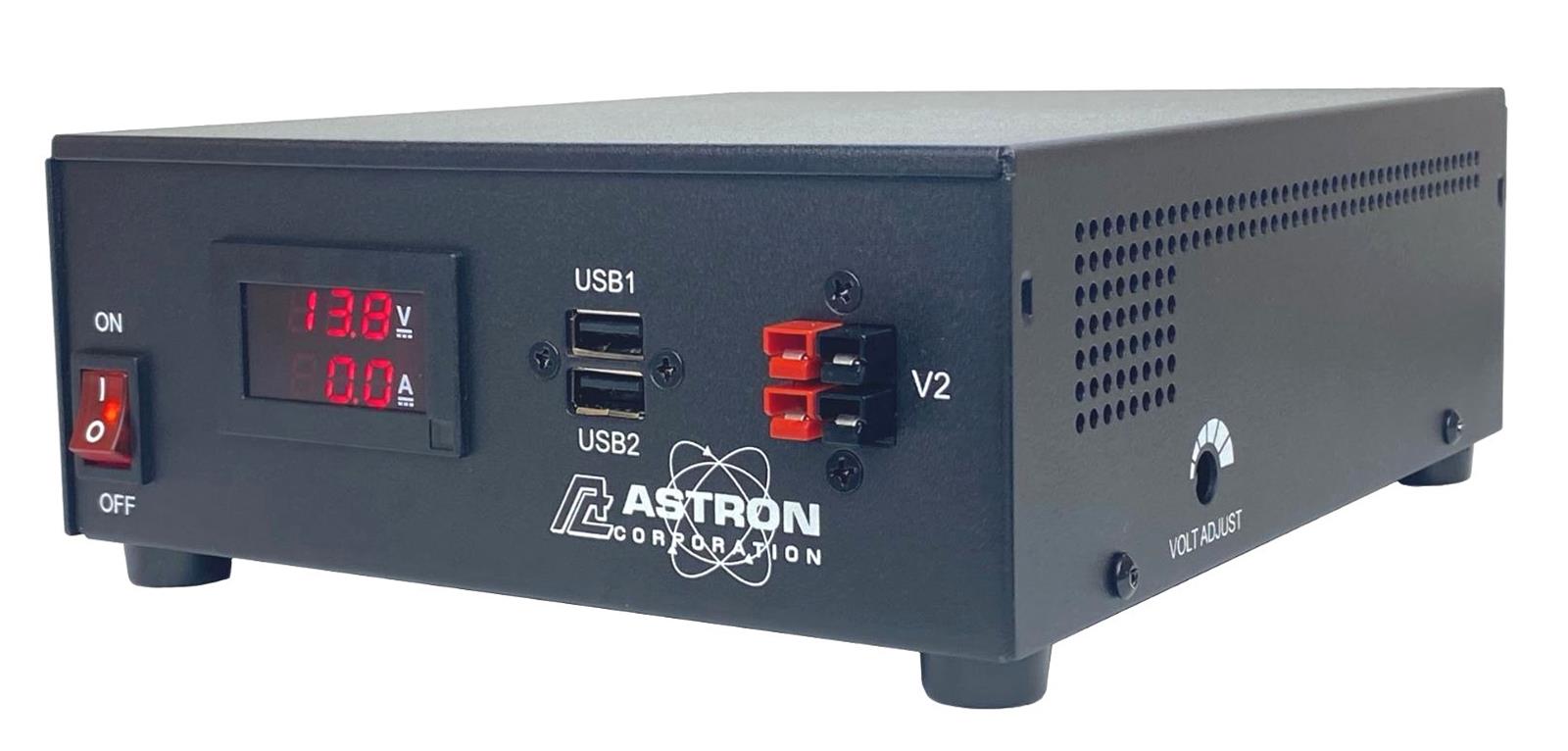

Astron SS Series Switching Power Supplies SS-30M-AP

Brand: Astron Corporation
Manufacturer's Part Number: SS-30M-AP
Part Type: Power Supplies
Product Line: Astron SS Series Switching Power Supplies
DXE Part Number: ASR-SS-30M-AP
Power Supply Type: Switching
Power Supply Continuous Output: 25A at 13.8 Vdc
Battery Backup: No
Power Supply Peak Output: 30A at 13.8 Vdc
Power Supply Voltage Adjustment Control: Side panel
Power Supply Voltage Adjustment Range: 12.2-14.5 Vdc
Power Supply Metering Type: Dual meters

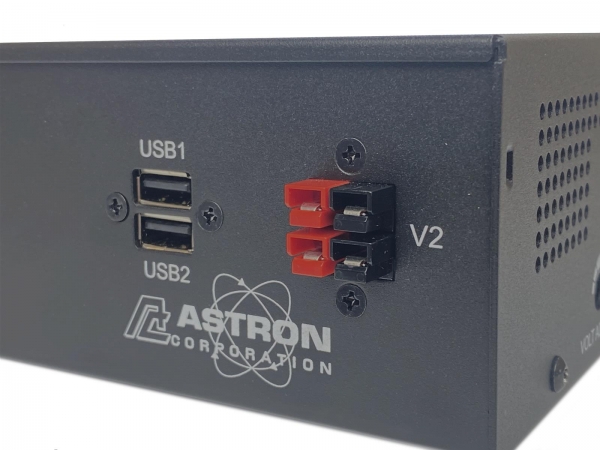

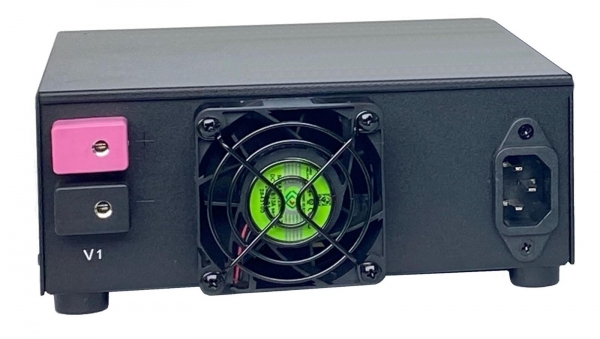

Power Supply High Current Terminal Location: Front/Rear panel
Power Supply Low Current Terminal Location: None
Power Supply Lighter Socket: No
Power Supply Cooling Type: Fan
Power Supply Width: 7.000 in.
Power Supply Height: 2.875 in.
Power Supply Depth: 9.375 in.
Power Supply Weight: 5.00 lbs.
Quantity: Sold individually.
Notes: Includes separate backlit DC-Volt and DC-Amp meters.
Application Notes: 110-240 Vac, 50/60 Hz automatic selection
Additional Information
Power Supply Input Voltage
120 Vac
240 Vac
Astron SS Series Switching Power Supplies
Astron Corporation SS Series Switching Power Supplies are highly regulated and designed for moderate to high power applications. While all of them make excellent general purpose power supplies, many of the SS Series supplies are designated to work with, and provide enclosures for, specific land mobile radios.
