Astron VS Series Linear Power Supplies VS-70M-AP
Linear Power Supply, Variable, 70 A At 13.8 Vdc Peak Output, Meters, Front Panel Powerpoles, Heat Sink and Fan, 120 Vac Input, Each
Brand: Astron Corporation
Manufacturer's Part Number: VS-70M-AP
Part Type: Power Supplies
Product Line: Astron VS Series Linear Power Supplies
Power Supply Type: Linear, Regulated
Power Supply Continuous Output: 57A at 13.8 Vdc
Battery Backup: No
Power Supply Peak Output: 70A at 13.8 Vdc
Power Supply Voltage Adjustment Control: Front panel
Power Supply Voltage Adjustment Range: 2.0-15.0 VDC
Power Supply Metering Type: Dual meters
Power Supply High Current Terminal Location: Front/Rear panel
Power Supply Low Current Terminal Location: None
Power Supply Lighter Socket: No
Power Supply Cooling Type: Fan
Power Supply Width: 13.750 in.
Power Supply Height: 6.000 in.
Power Supply Depth: 12.125 in.
Power Supply Weight: 48.00 lbs.
Quantity: Sold individually.
Additional Information
Power Supply Input Voltage
105 Vac
110 Vac
115 Vac
120 Vac
125 Vac
Astron VS Series Linear Power Supplies

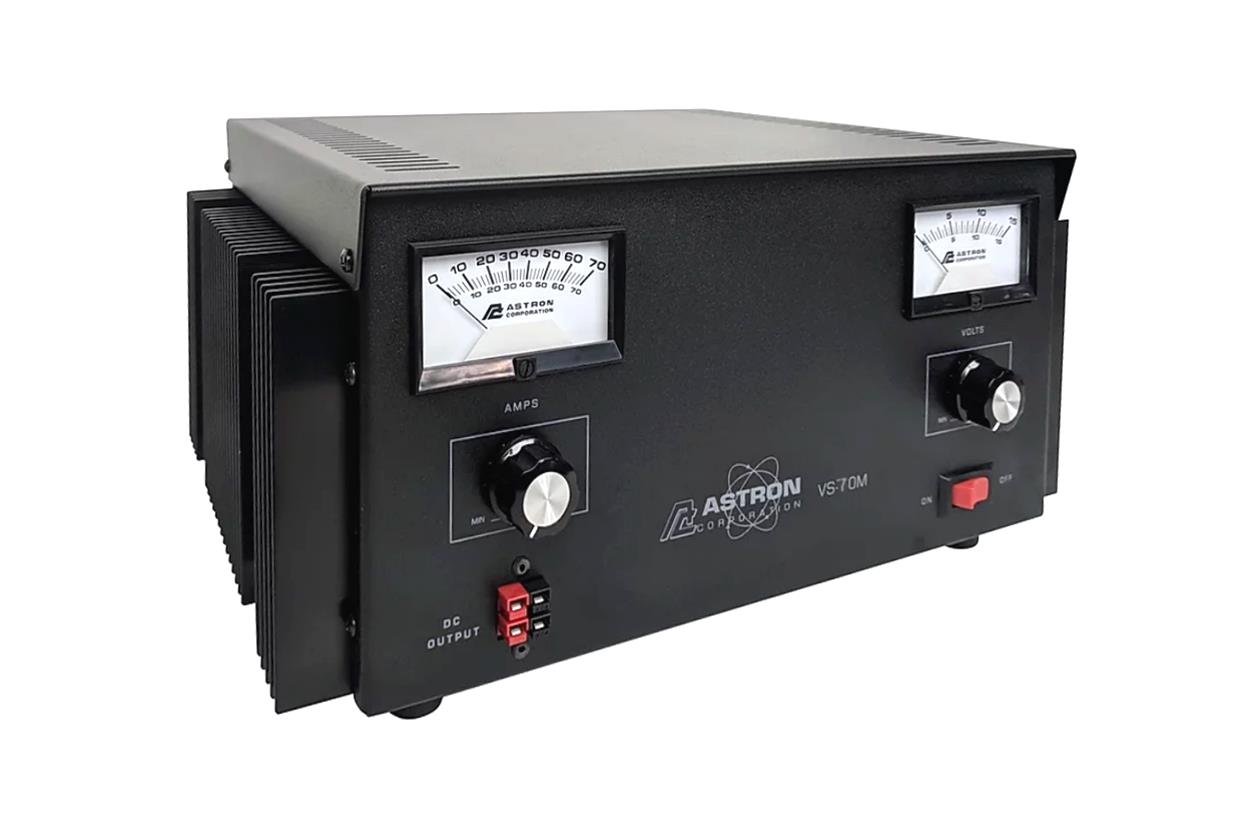

These Astron Corporation VS Series Linear Power Supplies offer continuous output current ratings from 9 to 57 amps at 13.8 V, depending on the model. Adjustable current limiting is from 1.5A to the maximum rated output! Front panel controls provide current limiting and voltage adjustment, while dual meters monitor the output condition. Manufactured as traditional power supplies, they utilize robust components for durability and long life!

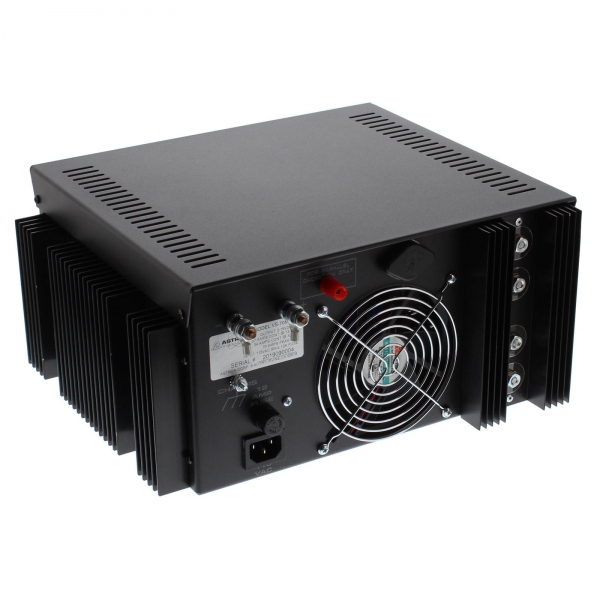

Designed to be exceptional bench supplies, these supplies offer flexibility of output voltage, coupled with current limiting, making them superb test equipment! All Astron Corporation VS Series Linear Power Supplies provide a highly regulated variable DC output for the operation of mobile or portable equipment from 110-120 volt wall current (some models are available to operate on 220-240 Vac). VS Series power supplies with a cigarette lighter socket on their front panel also have DC output terminals on the rear panel. Some models now have Anderson Powerpoles and rear panel DC output terminals, as well. That's convenient!
Look at these outstanding features!
* Precision regulation adjustable from 2 to 15 Vdc
* Adjustable current limiting
* Separate lighted voltage and current meters
* Short circuit and over-voltage protection
* Low peak to peak ripple of less than 5 mv
* High surge capacity
* Fold-back current limiting
* Grounded power cord
* External fuse access
