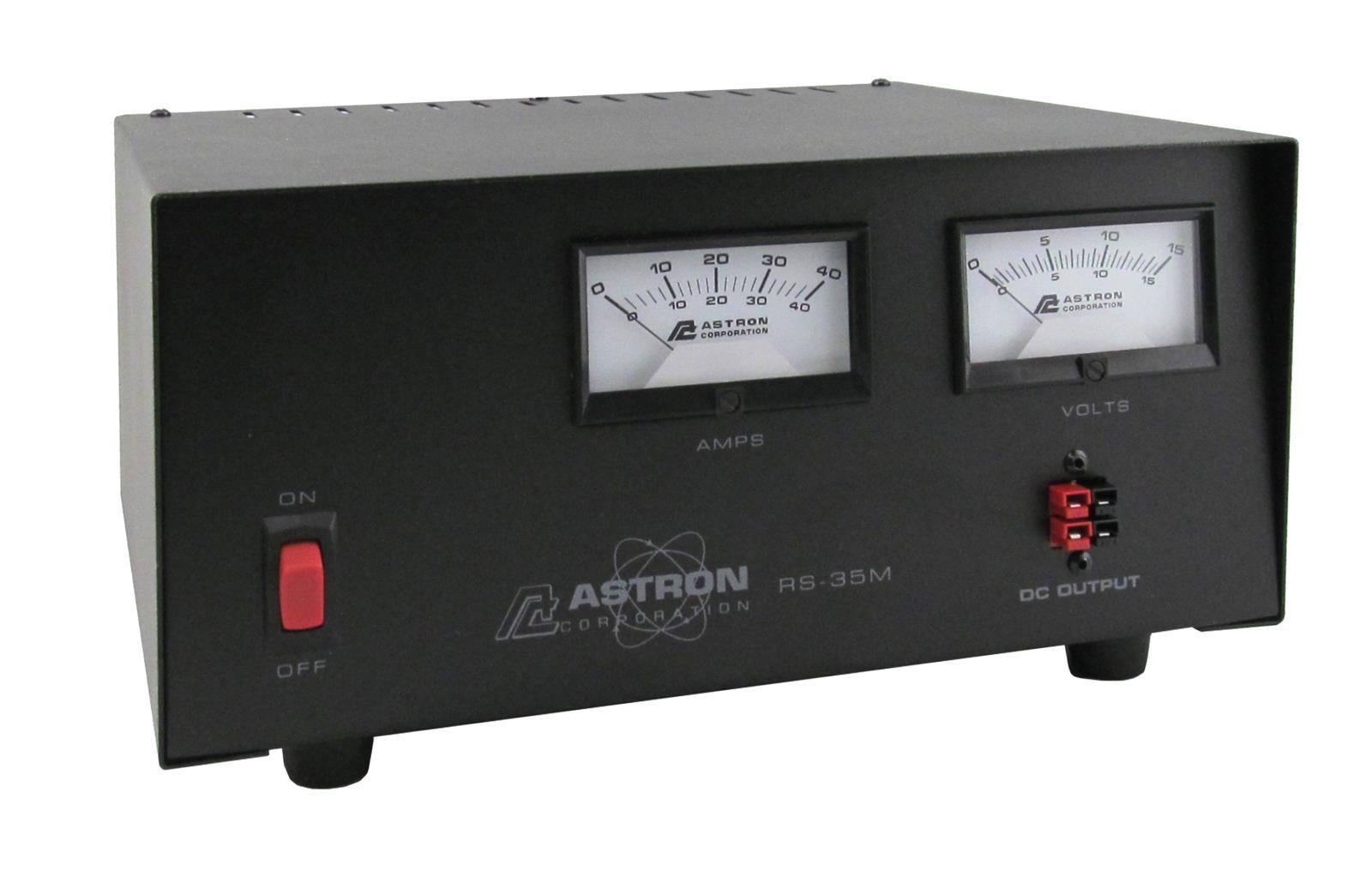

Astron Power Supplies RS-35M-AP
Power Supply, Linear, Regulated, Dual Meter, Replaces RS-35M, 35 A @ 13.8 Vdc Peak Output, 120 Vac Input, Front Panel Powerpole Connectors Added, Each
Astron Power Supplies RS-35M-AP
Brand: Astron Corporation
Manufacturer's Part Number: RS-35M-AP
Part Type: Power Supplies
Product Line: Astron Power Supplies
Power Supply Type: Linear, Regulated
Power Supply Continuous Output: 25A at 13.8 Vdc
Battery Backup: No
Power Supply Peak Output: 35A at 13.8 Vdc
Power Supply Voltage Adjustment Control: Internal
Power Supply Voltage Adjustment Range: 11.0-15.0 VDC
Power Supply Metering Type: Dual meters
Power Supply High Current Terminal Location: Front/Rear panel
Power Supply Low Current Terminal Location: None
Power Supply Lighter Socket: No
Power Supply Cooling Type: Heat sink
Power Supply Width: 11.000 in.
Power Supply Height: 5.000 in.
Power Supply Depth: 11.000 in.
Power Supply Weight: 27.00 lbs.
Quantity: Sold individually.
Notes:

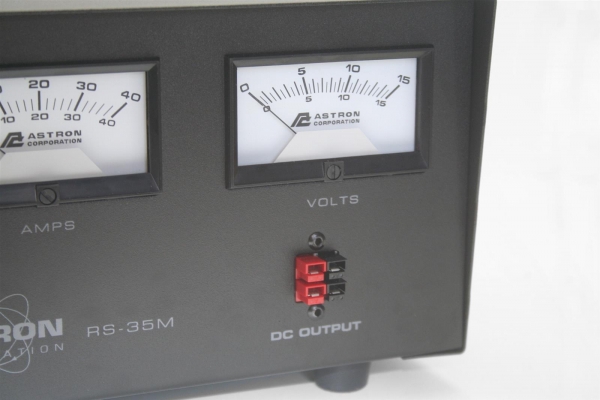

Two pairs of Powerpole connectors on front panel. Ripple less than 5mv peak to peak (full load and low line).
Additional Information
Power Supply Input Voltage
105 Vac
110 Vac
115 Vac
120 Vac
125 Vac
Astron Power Supplies
When you are in need of reliable DC power supply, look no further than Astron Power Supplies. This line of linear DC power supplies are made of heavy-duty, high-quality materials.
Astron has your power requirements covered with a wide variety of voltage and amperage outputs and case styles with and without meters. Even their power supplies with only cigarette lighter sockets or with Anderson Powerpoles on the front panel still have DC output terminals on the rear panel. That's convenient!
Astron linear-type transformer power supply features include:
* Solid state electronically regulated
* Fold-back current limiting protects power supply from excessive current and continuous shorted output
* Crowbar over voltage protection on all models except RS-3L, RS-4L and RS-5L
* Tight regulation and low ripple at low line input voltage
* Heavy-duty heat sink (70A models add a low noise fan)
* Three conductor power cord
* All metered units feature backlit meters
Performance specifications:
* Input Voltage: Most models are built for 105 to 125 VAC input. Some "220" models are built for 210-250 VAC input.
* Output Voltage: As Listed
* Ripple less than 5 mv peak to peak (full load and low line)
Brand: Astron Corporation
Manufacturer's Part Number: RS-35M-AP
Part Type: Power Supplies
Product Line: Astron Power Supplies
Power Supply Type: Linear, Regulated
Power Supply Continuous Output: 25A at 13.8 Vdc
Battery Backup: No
Power Supply Peak Output: 35A at 13.8 Vdc
Power Supply Voltage Adjustment Control: Internal
Power Supply Voltage Adjustment Range: 11.0-15.0 VDC
Power Supply Metering Type: Dual meters
Power Supply High Current Terminal Location: Front/Rear panel
Power Supply Low Current Terminal Location: None
Power Supply Lighter Socket: No
Power Supply Cooling Type: Heat sink
Power Supply Width: 11.000 in.
Power Supply Height: 5.000 in.
Power Supply Depth: 11.000 in.
Power Supply Weight: 27.00 lbs.
Quantity: Sold individually.
