IC-F7040 Series P25 PortablesIcom |
|
|
|

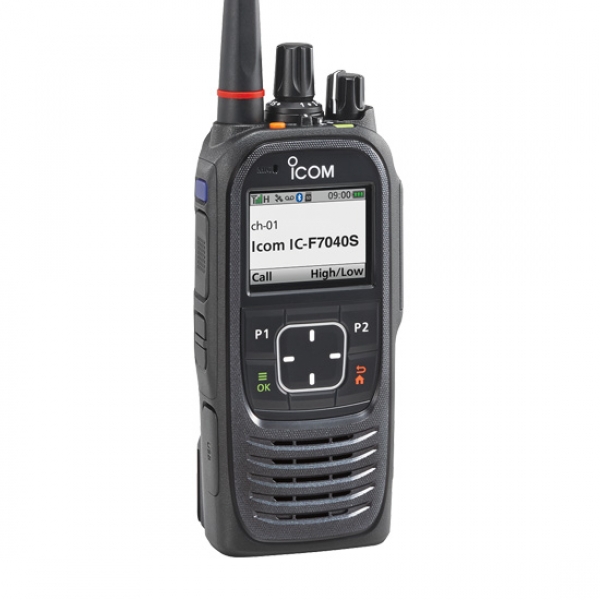

IC-F7040 Series P25 Portables
Icom’s Next Generation P25 Portables
The F7000 series P25 portables support the ever-advancing P25 standard. The needs for both public service and public safety organizations are also addressed with these radios. Icom’s third generation of this product not only captures the essentials, but offers dozens of new features and functions all in one new small form factor size. Public service and public safety organizations will like the built-in SD Card, GPS, USB interface, Bluetooth®, and color display. Activation options for trunking, OTAR, OTAP and more, allow for expanded or upgraded services without burdening the user with unnecessary features. Icom is the choice when you want to take your P25 communications to the next level.
Channels:
|
|
1024 channels w/128 zones |
Output Power:
|
|
5W (UHF/VHF), 3W (700/800MHz) |
Frequencies:
|
|
136-174, 380-470, 450-512 or 700/800MHz |
P25 Conventional:
|
|
Built-in |
P25 Trunking:
|
|
Upgrade available |
GPS:
|
|
Built-in |
Programmable Keys:
|
|
13 (F7000S), 13+12 DTMF keys (F7000T) |
Waterproof Rating:
|
|
IP68 |
Versions:
|
|
Display with simple keypad
Display with full DTMF keypad |
Intuitive User Interface
The high-resolution color LCD enhances the visibility both in natural and indoor lighting. Clearly labeled function and menu items make it easy to understand icons and characters. The night mode LCD setting is an alternative for use in night time or low lighting conditions. The glass is scratch resistant to protect from cracks and scratches.
Day mode
Night mode
P25 Features
- P25 Phase 1 conventional
- P25 Phase 1 trunking and Phase 2 trunking optional licenses
- P25 voting scan (P25 conventional mode) optional license
- Enhanced dual-rate Vocoder, AMBE+2™
- Analog/digital mixed operation
- Over-the-Air Programming (OTAP) optional license
- Individual and group call
- Unit ID and talkgroup display on receive
- Status update and status query
- Short data message (up to 100 characters)
- GPS position and transparent data transmission optional license
- Call alert
- Phone number list
- Call log
Digital Voice Recorder
The F7000 series can record incoming and outgoing communications, and replay recorded communications. Add a 32GB microSD card and record up to 500 hours. The recorded audio is saved in "wav" format and allows user to replay on the radio or a PC. Users can optionally overwrite first call in first call out, if the card is full. The recording captures timestamp and individual or group ID. Unit ID is captured on individually calls and group ID is captured on group calls. Users can also scroll to playback calls on the radio.
Safety Features
For emergency situations the F7000 series includes an emergency button and five emergency functions: man down, motion detection, stationary detection, lone worker and power OFF emergency. The motion/stationary sensor sensitivity level is programmable in 10 levels for each function.
Additional Features
- FIPS 140 Level 1 AES with Over-the-air Rekeying (OTAR) optional license and board
- Front panel programming optional license
- Hands-free communication with built-in Bluetooth®
- Tile designed keypad increases durability and visibility
- AquaQuake™ draining function to maintain clear audio
- Channel voice announcement
- USB port to connect to a PC
- Built-in 2-tone, 5-tone, CTCSS, DTCS & MDC1200 in analog
- 14-pin ACC connector with BTL amplifier output
- TX/RX active noise canceller
- TX/RX audio equalizer
Specifications
General |
Frequency coverage |
769–775MHz
799–805MHz
806–824MHz
851–869MHz |
|
Number of channels |
1024 channels /128 zones |
Type of emission |
16K0F3E, 14K0F3E, 11K0F3E, 8K50F3E, 8K10F1E/F1D, 8K10F1W |
Power supply requirement |
7.5 V DC nominal |
Current drain
Tx
Rx |
1.6 A
90 mA /220 mA (Max. audio (internal SP)/Standby) |
Antenna impedance |
5OΩ |
Operating temperature range |
–30 °C to +60 °C; –22 °F to +140 °F (Radio specifications) |
|
Dimensions (proj. not included) |
53.6 × 123.5 × 38.2 mm; 2.1 × 4.9 × 1.5 in (With BP-284) |
Weight |
180 g, 6.4 oz (main unit)
345 g, 12.2 oz (BP-284, MB-133, FA-S100U) |
Transmitter |
Output power (Hi) |
3 W |
Maximum frequency deviation |
±5.0 kHz (25 kHz), ±4.0 kHz (20 kHz), ±2.5 kHz (12.5 kHz) |
Frequency stability |
|
Spurious emissions |
70 dB minimum |
FM hum and noise |
55 dB typical |
Audio harmonic distortion |
1.5% typical (AF 1kHz 40% deviation) |
FSK Error |
1% typical |
Receiver |
Sensitivity
Analog (12 dB SINAD)
Digital (5% BER) |
0.25 μV typical
0.25 μV typical |
Adjacent channel selectivity
Analog
Digital |
75/75/53 dB typical (25/20/12.5 kHz, TIA-603B)
75/75/72 dB typical (25/20/12.5 kHz, TIA-603) |
Spurious response rejection |
70 dB minimum |
Intermodulation rejection
Analog
Digital |
70 dB typical
70 dB typical |
Audio output power
Internal SP
External SP |
800 mW typical (at 5% distortion with a 12 Ω load)
1000 mW typical (at 5% distortion with an 8 Ω load) |
Measurements made in accordance with TIA-102 (P25), TIA-603 (FM Wide/narrow).
All stated specifications are subject to change without notice or obligation.
*1 25 kHz bandwidth is no longer available for FCC Part 90 licensees for USA versions.
Applicable U.S. Military Specifications and IP Rating
Standard |
MIL 810 G |
Method |
Proc |
Low Pressure |
500.5 |
I, II |
High Temp. |
501.5 |
I, II |
Low Temp. |
502.5 |
I, II |
Temp. Shock |
503.5 |
I-C |
Solar Radiation |
505.5 |
I |
Rain Blowing/Drip |
506.5 |
I, III |
Humidity |
507.5 |
II |
Salt Fog |
509.5 |
– |
Dust Blowing |
510.5 |
I |
Immersion |
512.5 |
I |
Vibration |
514.6 |
I |
Shock |
516.6 |
I, IV |
Also meets equivalent MIL-STD-810-C, -D, -E and -F.
Ingress Protection Standard |
Dust & Water |
IP68 (Dust-tight and waterproof protection) |
Battery Life
Battery Pack |
Type |
Capacity |
Operating time* (Approx) |
BP-283 |
Rechargeable Li-ion |
2010 mAh (typ.), 1910 mAh (min.) |
9 hours (VHF) |
BP-284 |
Rechargeable Li-ion |
3210 mAh (typ.), 3070 mAh (min.) |
14 hours (VHF) |
* Tx: Rx: standby = 5:5:90 duty cycle.
Supplied Accessories
- Battery pack, BP-284
- Belt clip, MB-133
- Antenna & charger purchased separately
|
|
