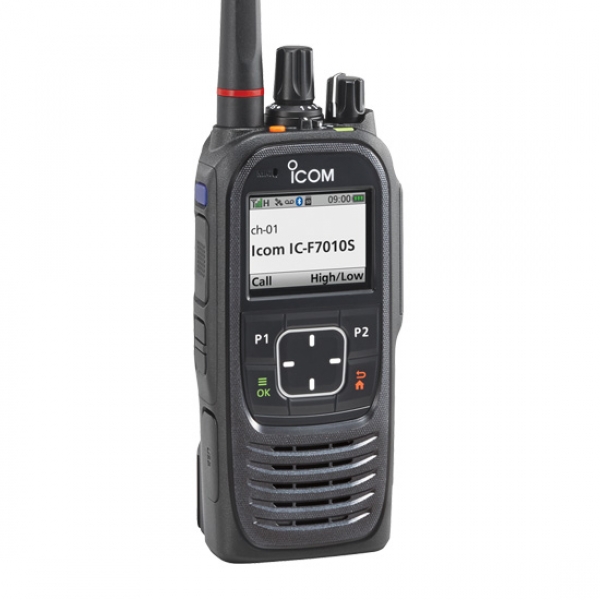

IC-F7010 Series P25 Portables

Icom

PRICE UPON REQUEST
This product will be shipped from: USA (International shipping restrictions may apply). Sold and shipped by Radiohaus America
Indicar produto
Dúvidas?
Aumentar fonte Diminuir fonte

IC-F7010 Series P25 Portables



Icom’s Next Generation P25 Portables

The F7000 series P25 portables support the ever-advancing P25 standard. The needs for both public service and public safety organizations are also addressed with these radios. Icom’s third generation of this product not only captures the essentials, but offers dozens of new features and functions all in one new small form factor size. Public service and public safety organizations will like the built-in SD Card, GPS, USB interface, Bluetooth®, and color display. Activation options for trunking, OTAR, OTAP and more, allow for expanded or upgraded services without burdening the user with unnecessary features. Icom is the choice when you want to take your P25 communications to the next level.

Channels:

  1024 channels w/128 zones

Output Power:

  5W (UHF/VHF), 3W (700/800MHz)

Frequencies:

  136-174, 380-470, 450-512 or 700/800MHz

P25  Conventional:

  Built-in

P25 Trunking:

  Upgrade available

GPS:

  Built-in

Programmable Keys:

  13 (F7000S), 13+12 DTMF keys (F7000T)

Waterproof Rating:

  IP68

Versions:

  Display with simple keypad
Display with full DTMF keypad

Intuitive User Interface

The high-resolution color LCD enhances the visibility both in natural and indoor lighting. Clearly labeled function and menu items make it easy to understand icons and characters. The night mode LCD setting is an alternative for use in night time or low lighting conditions. The glass is scratch resistant to protect from cracks and scratches.

F7010 user interface - day made
Day mode
F7010 menu - night mode
Night mode

P25 Features

  • P25 Phase 1 conventional
  • P25 Phase 1 trunking and Phase 2 trunking optional licenses
  • P25 voting scan (P25 conventional mode) optional license
  • Enhanced dual-rate Vocoder, AMBE+2™
  • Analog/digital mixed operation
  • Over-the-Air Programming (OTAP) optional license
  • Individual and group call
  • Unit ID and talkgroup display on receive
  • Status update and status query
  • Short data message (up to 100 characters)
  • GPS position and transparent data transmission optional license
  • Call alert
  • Phone number list
  • Call log

Digital Voice Recorder

The F7000 series can record incoming and outgoing communications, and replay recorded communications. Add a 32GB microSD card and record up to 500 hours. The recorded audio is saved in "wav" format and allows user to replay on the radio or a PC. Users can optionally overwrite first call in first call out, if the card is full. The recording captures timestamp and individual or group ID. Unit ID is captured on individually calls and group ID is captured on group calls. Users can also scroll to playback calls on the radio.

Safety Features

For emergency situations the F7000 series includes an emergency button and five emergency functions: man down, motion detection, stationary detection, lone worker and power OFF emergency. The motion/stationary sensor sensitivity level is programmable in 10 levels for each function.

Additional Features

  • FIPS 140 Level 1 AES with Over-the-air Rekeying (OTAR) optional license and board
  • Front panel programming optional license
  • Hands-free communication with built-in Bluetooth®
  • Tile designed keypad increases durability and visibility
  • AquaQuake™ draining function to maintain clear audio
  • Channel voice announcement
  • USB port to connect to a PC
  • Built-in 2-tone, 5-tone, CTCSS, DTCS & MDC1200 in analog
  • 14-pin ACC connector with BTL amplifier output
  • TX/RX active noise canceller
  • TX/RX audio equalizer

Specifications



General
Frequency coverage
IC-F7010T/S
136–174MHz
IC-F7020T/S
380–470MHz
450–512MHz
450–520 MHz
Number of channels 1024 channels /128 zones
Type of emission 16K0F3E*1, 11K0F3E, 8K50F3E, 8K10F1E/F1D, 8K10F1W
Power supply requirement 7.5V DC nominal
Current drain
  Tx
  Rx


IC-F7010T/S
1.5A
450 mA /150 mA
(Max. audio (internal SP)/Standby)
IC-F7020T/S
1.8A
450 mA /150 mA
(Max. audio (internal SP)/Standby)
Antenna impedance 5O Ω
Operating temperature range
–30 °C to +60 °C; –22 °F to +140 °F (Radio specifications)
Dimensions (proj. not included) 53.6 × 123.5 × 38.2 mm; 2.1 × 4.9 × 1.5 in (With BP-284)
Weight
IC-F7010T/S
355 g; 12.5 oz
(BP-284, MB-133, FA-S81VS)
IC-F7020T/S
355 g; 12.5 oz
(BP-284, MB-133, FA-S81US)
Transmitter
Output power (Hi, L2, L1) 5 W, 2 W, 1 W
Maximum frequency deviation ±5.0 kHz (@25 kHz), ±2.5 kHz (@12.5 kHz)
Frequency stability
±1.0ppm
Spurious emissions 80 dB typ.
FM hum and noise 55 dB typ. (@25 kHz), 55 dB typ. (@12.5 kHz)
Audio harmonic distortion 0.5% typ. (AF 1kHz 40% deviation)
FSK Error 1% typ. (C4FM), 3% typ. (H-CPM)
Receiver
Sensitivity
  Analog (12 dB SINAD)
  Digital (5% BER)
IC-F7010T/S
0.22 μV typ. (@25/12.5 kHz)
0.22 μV typ. (@C4FM, H-DQPSK)
IC-F7020T/S
0.23 μV typ. (@25/12.5 kHz)
0.23 μV typ. (@C4FM, H-DQPSK)
Adjacent channel selectivity
  Analog





  Digital


IC-F7010T/S
80/57 dB typ.
(@25/12.5 kHz, TIA-603B),

80/76 dB typ.
(@25/12.5 kHz, TIA-603)

63 dB typ.
(@C4FM, H-DQPSK, TIA-102)
IC-F7020T/S
75/55 dB typ.
(@25/12.5 kHz, TIA-603B),

75/72 dB typ.
(@25/12.5 kHz, TIA-603)

60 dB typ.
(@C4FM, H-DQPSK, TIA-102)
Spurious response rejection
IC-F7010T/S
80 dB typ.
IC-F7020T/S
76 dB typ.
Intermodulation rejection
  Analog
  Digital
IC-F7010T/S
75 dB typ.
75 dB typ.
IC-F7020T/S
74 dB typ.
74 dB typ.
Audio output power
  Internal SP
  External SP

800 mW typ. (at 5% distortion with 12 Ω load)
1000 mW typ. (at 5% distortion with 8 Ω load)

Measurements made in accordance with TIA-102 (P25), TIA-603 (FM Wide/narrow).
All stated specifications are subject to change without notice or obligation.

*1 25 kHz bandwidth is no longer available for FCC Part 90 licensees for USA versions.


Applicable U.S. Military Specifications and IP Rating

Standard MIL 810 G
Method Proc
Low Pressure 500.5 I, II
High Temp. 501.5 I, II
Low Temp. 502.5 I, II
Temp. Shock 503.5 I-C
Solar Radiation 505.5 I
Rain Blowing/Drip 506.5 I, III
Humidity 507.5 II
Salt Fog 509.5
Dust Blowing 510.5 I
Immersion 512.5 I
Vibration 514.6 I
Shock 516.6 I, IV

Also meets equivalent MIL-STD-810-C, -D, -E and -F.


Ingress Protection Standard
Dust & Water IP68 (Dust-tight and waterproof protection)

Battery Life

Battery Pack Type Capacity Operating time* (Approx)
BP-283 Rechargeable Li-ion 2010 mAh (typ.), 1910 mAh (min.) 9 hours (VHF)
BP-284 Rechargeable Li-ion 3210 mAh (typ.), 3070 mAh (min.) 14 hours (VHF)

* Tx: Rx: standby = 5:5:90 duty cycle.


Supplied Accessories

  • Battery pack, BP-284
  • Belt clip, MB-133
  • Antenna & charger purchased separately
