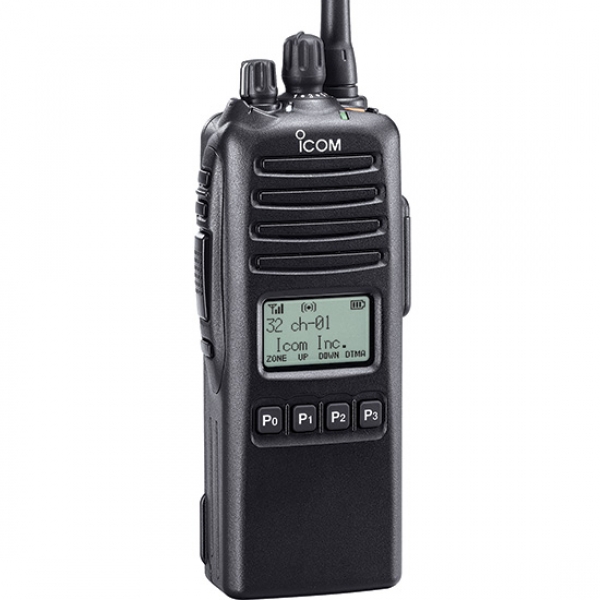

IC-F80D P25 Conventional UHF/VHF Portables

Icom

PRICE UPON REQUEST
This product will be shipped from: USA (International shipping restrictions may apply). Sold and shipped by Radiohaus America
Indicar produto
Dúvidas?
Aumentar fonte Diminuir fonte

IC-F80D P25 Conventional UHF/VHF Portables



The Smart Migration to an APCO P25 Digital Radio System

Channels:

  256 channels w/32 zones

Output Power:

  5W (VHF) 4W (UHF)

Frequencies:

   380-450MHz

Waterproof Rating:

  IP67

Programmable Keys:

  7

Versions:

  UHF with limited keypad and FIPS AES built-in

Built-in Multiple Signaling

The 2-Tone, 5-Tone, CTCSS, DTCS and MDC signaling capabilities are built-in for group communication or selective calling.

Up to 10 2-Tone and 8 5-Tone codes can be decoded on a single memory channel. This is perfect for professionals who require multiple district paging on one channel. When a matched tone is received, the following items are programmable for each code.

  • Bell icon
  • Answer back
  • Stun
  • Beep sound
  • Auto transmit
  • Scan

The following selective calling and ANI features are available with the built-in MDC signaling.

  • PTT ID/Caller ID
  • Radio check
  • Selective call
  • Call alert
  • Emergency, emergency mic monitoring
  • Emergency man down (with UT-124)
  •  Radio stun/revive
  • 500 Aliases
  • Status/message
  • Call log

DisplayAlphanumeric Display

The large high contrast LCD clearly shows a variety of information with a full dot-matrix display. Program the display to show either 1 line with 12 characters or 2 lines with 24 characters. Status icons are displayed at the top and the functions assigned to the P buttons (P0P3) are shown at the bottom of the display.
The bottom of the LCD shows the assigned functions (see right)

Tactical Group Function

The tactical group function allows you to copy memory channels to the tactical zone (zone 32) and dynamically regroup memory channels. Using the optional zone copy cable, memory channels in the tactical zone can be transferred from a master radio to other radios.

FIPS 140-2

The F80DS includes FIPS 140-2 validation, which confirms that the Icom encryption module, Icom AES Encryption, has passed rigorous field tests and provides agencies the independent assurance that the module meets or exceeds the highest performance standards in encryption for its classification. FIPS encryption is a requirement for many federal agencies.

Additional Features

  • Built-in inversion voice scrambler
  • Radio stun/kill function disables a lost or stolen radio over the air
  • Built-in audio compander
  • 8 DTMF autodix xal memories
  • Normal and priority scans
  • Power-on password prevents unauthorized people turning on the radio

Specifications



General
Frequency range 380-450MHz
Number of channels 256 channels / 32 zones
Channel spacing 12.5 kHz / 25 kHz, 15 kHz / 30 kHz
PLL channel step

2.5 kHz, 3.125 kHz (VHF)

5 kHz, 6.25 kHz (UHF)

Antenna impedance 50Ω
Usable temperature range

-30°C to +60°C;

-22°F to +140°F

Power supply requirement 7.2V DC
Output power and current drain
(at 7.2V DC; approx.)
  IC-F70, F70D IC-F80, F80D
Output Power 5W 4W
Transmit   High 2.2A 2.4A
Low (1W) 1.5A 1.5A
Receive AF Max. 450mA 450mA
stand-by 150mA 150mA
Dimensions (with battery pack) (Projections not included)

58.6 (W) × 152 (H) × 38 (D) mm;

25/16 (W) × 531/32 (H) × 11/2 (D) in

Weight (approx.)

14.1oz (with BP-253)

15.9oz (with BP-254)

Transmitter
Max. freq. deviation

±5.0 kHz (Wide)

+2.5 kHz (Narrow)

Frequency Error ±2.0ppm
Spurious emissions 70dB typ.
Adjacent channel power 70dB/60dB min. (Wide/narrow)

FM Hum and Noise

   VHF

   UHF



45/40dB typ. (Wide/narrow)

40/35dB typ. (Wide/narrow)

Audio harmonic distortion 3% typ. (AF 1 kHz, 40% deviation)
Modulation limiting 60-100% of max. deviation
Ext. Microphone connector 9-pin multi connector / 2.2kΩ
Receiver
Intermediate freq.

1st  46.35

2nd  450 kHz

Sensitivity (typical)

   Analog (12dB SINAD)

   Digital (5% BER)



0.25µV typ.

0.25µV typ.

Squelch sensitivity

   VHF

   UHF



0.25µV typ.

0.32µV typ.

Adjacent Channel Selectivity
Analog VHF
Analog UHF

Digital VHF / UHF


80/73dB typ. (Wide/narrow)
78/70dB typ (Wide/narrow)
60dB typ.

Spurious response

80dB/75dB typ. (VHF/UHF)

Intermodulation 75dB (typ.)
Hum and noise ratio 45/40dB typ. (Wide/narrow)
Audio output power 500mW (at 10% distortion with an 8Ω load)
Ext. speaker connector 9-pin multi connector / 8Ω

Applicable U.S. Military Specifications

Standard MIL 810 C MIL 810 D MIL 810 E MIL 810 F
Method Proc Method Proc Method Proc Method Proc
Low Pressure 500.1 I 500.2 I, II 500.3 I, II 500.4 I, II
High Temp. 501.1 I 501.2 I, II 501.3 I, II 501.4 I, II
Low Temp. 502.1 I 502.2 I, II 502.3 I, II 502.4 I, II
Temp. Shock 503.1 I 503.2 I 503.3 I 503.4 I
Solar Radiation 505.1 I 505.2 I 505.3 I 505.4 I
Rain 506.1 I, II 506.2 I, II 506.3 I, II 506.4 I, II
Humidity 507.1 I, II 507.2 II, III 507.3 II, III 507.4
Salt Fog 509.1 I 509.2 I 509.3 I 509.4
Dust Blowing 510.1 I 510.2 I 510.3 I 510.4 I
Immersion 512.1 I 512.2 I 512.3 I 512.4 I
Vibration 514.2 VIII, X 514.3 I 514.4 I 514.5 I
Shock 516.2 I, II, V 516.3 I, IV 516.4 I, IV 516.5 I, IV

Measurements made in accordance with EIA-152C/204D, TIA-603. All stated specifications are subject to change without notice or obligation.

Supplied Acessories

  • Antenna
  • Belt Clip, MB-94
  • Battery pack, BP-254
