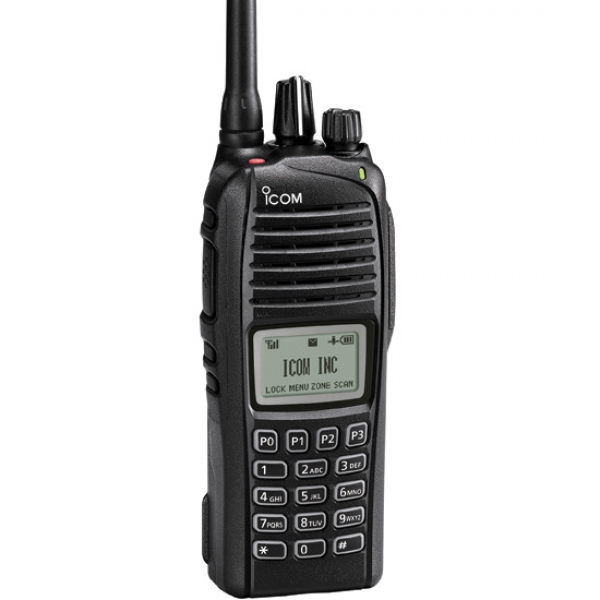

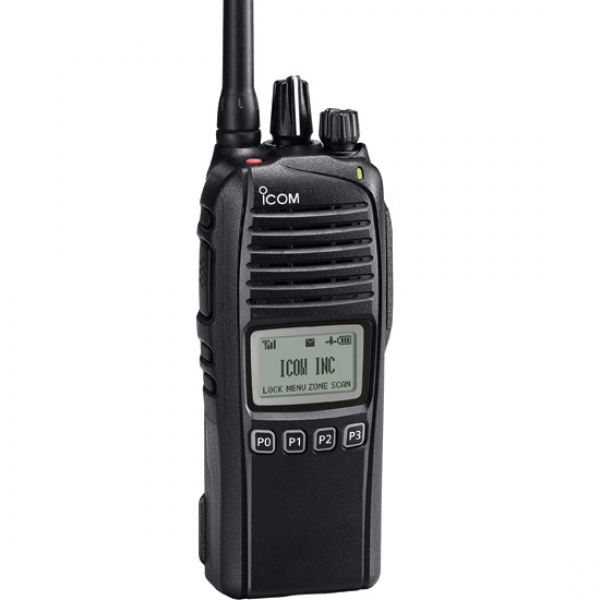

IC-F3360D IDAS™ Type-C Trunking Portables VHF/UHF
Ready for NXDN™ Type-C Trunking with Superior Waterproof Protection
Type-C Trunking Compatible
The IC-F3360D series provides NXDN™ Type-C trunking and NXDN™ conventional systems.
- Paging call
- All call
- Individual call
- Text message
- Stun, Kill and Revive (RX)
- Over-the-air alias
- 15-bit digital scrambler
- Mixed mode operation (Conventional system)
- Broadcast call
- Group call
- Status call
- Emergency call
- Radio check (RX)
- GPS
- RAN
Menu-Driven User Interface
The menu-driven user interface provides easy and intuitive operation. The functions can be toggled with the left and right [P2] and [P3] buttons and allow you to perform various operations and settings.
Built-in GPS Receiver
Your current position data can be attached to a voice or data (status or emergency signal) transmission and can be sentto dispatch stations.
Man Down & Lone Worker
The man down function sends an emergency signal if left in a horizontal position. The lone worker function detects if the transceiver is not operated or not moved for a preset period.
Transparent Data
When IC-F3360D series is connected to a PC or other external equipment, the transparent data function allows data communication in a digital mode.
IP67 Dust-Tight & Waterproof
The IC-F3360D series provides rugged protection against dust and water. The transceiver can with stand 1m depth of water for 30 minutes.
800mW (typ.) Audio Output
The built-in BTL amplifier doubles the audio output power and the large 40mm speaker delivers loud 800mW (typ.) audio to receive all calls under noisy environments.
Other Features
- 512 memory channels with 128 zones
- CTCSS/DTCS/DTMF encoder/decoder*
- MDC 1200 PTT ID transmission*
- Inversion voice scrambler*
- Audio compander*
*Analog mode only May vary depending on version.
Specifications
| General |
| Frequency coverage |
F3360DT/DS
136–174MHz
F4360DT/DS
400-470MHz
|
| Number of channels |
512 channels/128 zones |
| Type of emissions |
8K50F3E, 8K30F1E/F1D, 4K00F1E/F1D |
| Channel spacing |
15/12.5/6.25kHz |
| Power supply requirement |
7.5V DC nominal |
Current drain
TX High
RX Max. auidio/ Sandby |
F3360DT/DS
1.5A
550mA / 140mA |
F4360DT/DS
1.8A
550mA / 140mA |
|
| Antenna impedance |
50Ω |
| Operating temperature range |
-30°C to 60°C; –22°F to +140°F |
Dimensions (W×H×D)
(Projections not included) |
53.5×142.7×39.5 mm; 2.11×5.62×1.56 in (With BP-232WP) |
| Weight |
400g; 14.1oz (With BP-232WP, MB-94R & FA-SC57U) |
| Transmitter |
| Output power |
5W, 1W (Hi, Low) |
| Max. frequency deviation |
±2.5kHz (Narrow) |
| Frequency stability |
±1.0ppm |
| Spurious emissions |
75dB typ. |
| FM hum and noise |
F3360DT/DS
50dB typ. (Narrow)
F4360DT/DS
45dB typ. (Narrow)
|
| AAudio harmonic distortion |
1.5% typ. (AF 1kHz 40% deviation) |
| FSK error |
1% typ. (Digital 6.25/12.5kHz) |
| Ext. microphone connector |
14-pin multi-connector/2.2kΩ |
| Receiver |
Sensitivity
Analog
Digitlal |
0.24μV typ. (at 12dB SINAD)
–8.0dBμV emf typ. (at 5% BER) |
| Adjacent channel selectivity |
68/67/59dB typ. (Narrow/D 12.5kHz/D 6.25kHz) |
| Spurious response |
80dB min. |
| Intermodulation |
75/70/70dB typ. (Narrow/D 12.5kHz/D 6.25kHz) |
| Hum and noise |
F3360DT/DS
50dB typ. (Narrow)
F4360DT/DS
48dB typ. (Narrow)
|
| Ext. speaker connector |
14-pin multi-connector/8Ω |
| Audio output power (at 5% distortion) |
800mW typ. (Internal SP, 12Ω load)
1000mW typ. (External SP, 8Ω load) |
Measurements made in accordance with TIA-603, EN 301-166 and EN 300-113. All stated
specifications are subject to change without notice or obligation.
Applicable U.S. Military Specifications & IP Rating
Icom makes rugged products that meet MIL-STD requirements and strict environmental standards as follows.
| Standard |
MIL 810 G |
| Method |
Proc |
| Low Pressure |
500.5 |
I, II |
| High Temp. |
501.5 |
I, II |
| Low Temp. |
502.5 |
I, II |
| Temp. Shock |
503.5 |
I-C |
| Solar Radiation |
505.5 |
I |
| Rain Blowing/Drip |
506.5 |
I, III |
| Humidity |
507.5 |
II |
| Salt Fog |
509.5 |
– |
| Dust Blowing |
510.5 |
I |
| Immersion |
512.5 |
I |
| Vibration |
514.6 |
I |
| Shock |
516.6 |
I, IV |
Also meets equivalent MIL-STD-810-C, -D, -E and -F.
| Ingress Protection Standard (F3360D/F4360D, BP-232WP and HM-184) |
| Dust & Water |
IP67 (Dust-tight and waterproof protection) |
