IC-F3400D Series IDAS UHF/VHF Portables

Icom

PRICE UPON REQUEST
This product will be shipped from: USA (International shipping restrictions may apply). Sold and shipped by Radiohaus America
Indicar produto
Dúvidas?
Aumentar fonte Diminuir fonte

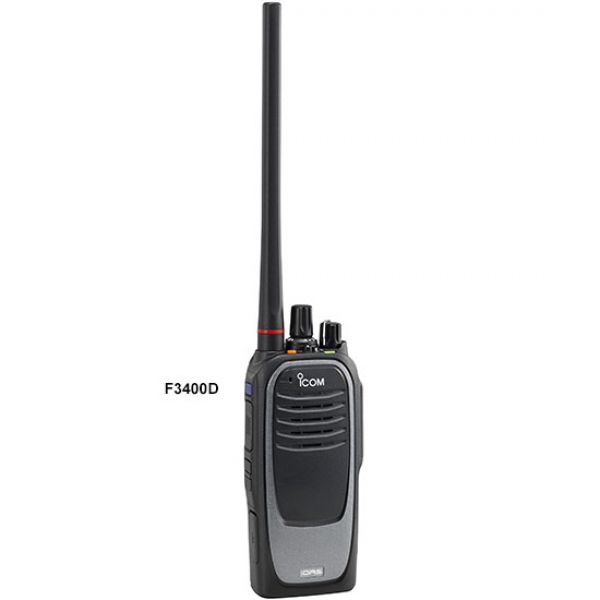

IC-F3400D Series IDAS UHF/VHF Portables



Icom’s Next Generation IDAS™ Portables

The F3400D series radios is Icom's new flagship IDAS product. Dozens of new features and functions are included all in one new small form factor size. Features like SD Card, USB interface and Bluetooth appear for the first time in this land mobile product. A brilliant color display allows for easy observation of critical information, in the dimmest of light to the brightest of sunshine. Icom is the choice when you want to take your communications to the next level.

Channels:

  32 channels w/2 zones (F3400D)
1024 channels w/128 zones (F3400DS/DT)

Output Power:

  5W

Frequencies:

  136-174, 380-470 or 450-512 MHz

Digital Conventional:

  IDAS built-in

Digital Trunking

  Upgrade available

LTR®:

  Built-in

GPS:

  Built-in

Programmable Keys:

  5 (F3400D)
13 (F3400DS)
13 + 12 DTMF keys (F3400DT)

Waterproof Rating:

  IP68

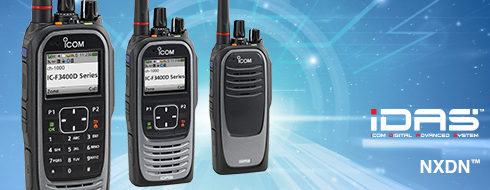

Versions:

  No display
Display with simple keypad
Display with full DTMF keypad

Intuitive User Interface

The high-resolution color LCD enhances the visibility both in nature and indoor lighting. Clearly labeled function and menu items make it easy to understand icons and characters. The night mode LCD setting is an alternative for use in night time or low lighting conditions. The glass is scratch resistant to protect from cracks and scratches.


Day mode

Night mode

Screen menu icons

Digital Voice Recorder

The F3400D series can record incoming and outgoing communications, and replay recorded communications. Add a 32GB microSD card and record up to 500 hours. The recorded audio is saved in "wav" format and allows user to replay on the radio or a PC. Users can optionally overwrite first call in first call out, if the card is full. The recording captures timestamp and individual or group ID. Unit ID is captured on individually calls and group ID is captured on group calls. Users can also scroll to playback calls on the radio.

Updating the F4400D MicroSD is simple. It takes just 5 steps and less than 2 minutes to update the radio with your settings.

Safety Features

For emergency situations the F3400D series includes an emergency button and five emergency functions: man down, motion detection, stationary detection, lone worker and power OFF emergency. The motion/stationary sensor sensitivity level is programmable in 10 levels for each function.

AquaQuake™

Popular in our marine radios, the AquaQuake draining function emits a vibrating buzz sound that clears water from the speaker grill to help maintain clear audio.

IDAS Features

The F3400D series provides NXDN™ CAI-based IDAS digital model operation in IDAS conventional and multi-site conventional. The following IDAS features available:

  • Analog/digital conventional mixed mode operation
  • Upgrade to Type-D trunking
  • Status
  • Text message
  • Radio check
  • Stun, kill and revive
  • Call alert
  • Remote monitor
  • And much more

Additional Features

  • Hands-free communication with built-in Bluetooth®
  • Tile designed keypad increases durability and visibility
  • Transparent data modem can transmit data at 9600bps over the radio
  • Send up to 100 character text messages
  • Programmable alerts can vibrate when a specific user calls
  • Channel voice announcement
  • USB port to connect to a PC
  • Active Noise Canceling
  • Built-in 2-tone, 5-tone, CTCSS, DTCS & MDC1200 in analog
  • 14-pin ACC connector with BTL amplifier output
  • VOX (voice operated transmission) function
  • Tactical group function
  • Normal, priority and voting scan
  • Radio discovery tool software troubleshoots problems with radio communications and incident analysis



Specifications



General
Frequency range
F3400DT/DS/D
136–174MHz
F4400DT/DS/D
380-470MHz
450-512MHz
Number of channels 32/2 Zones (D)
1024/128 Zones (DS/DT)
Type of emission
(Varies according to version)
16K0F3E*, 11K0F3E, 8K50F3E,8K30F1E/D, 4K00F1E/D
Channel spacing
(Varies according to version)
25/15/12.5 kHz* (Analog) 12.5/6.25 kHz (Digital)
Antenna impedance 50Ω
Power supply requirement 7.2V DC
Current drain (approx.)
Tx  High
Rx  Max. audio/Stand-by

1.5 A /1.8 A (VHF/UHF)
580 mA/140 mA

Operating temperature range –30°C to +60°C; –22°F to +140°F
Dimensions (with BP-232)
(projections are not included)
53.6×123.5×29.3 mm; 2.11×4.86×1.15 in (With BP-283)
Weight (approx.) 180 g; 6.4 oz (main unit without battery pack and antenna)
Transmitter
Output power 5W
Frequency error ±1.0 ppm
Spurious emissions 75/80 dB typ. (VHF/UHF)
FM Hum and noise (Analog) 56 dB typ.
Audio harmonic distortion 0.5% typ. (@AF 1 kHz 40% deviation
FSK error (Digital 1% typ.
Receiver
Sensitivity
12 dB SINAD
1% BER

0.23 μV typ.
–4 dBμV emf. typ.
Adjacent channel selectivity
Analog
Digital

75/72 dB typ. (W/N)
66 dB typ.
Spurious response 76 dB typ.
Intermodulation
Analog
Digital

74 dB typ.
70 dB typ.
Audio output power
Internal SP
External SP

1300 mW typ. (@5% distortion with 12 Ω)
1000 mW typ. (@5% distortion with 8 Ω)

Measurements made in accordance with TIA-603, EN300 086, EN301 166, EN300 113.
All stated specifications are subject to change without notice or obligation.
*25kHz bandwidth is no longer available for FCC Part 90 licensees for USA versions.

Applicable U.S. Military Specifications & IP Rating

Icom makes rugged products that have been tested to and pased the following MIL-STD requirements and strict environmental standards.

Standard MIL 810 G
Method Proc
Low Pressure 500.5 I, II
High Temp. 501.5 I, II
Low Temp. 502.5 I, II
Temp. Shock 503.5 I
Solar Radiation 505.5 I
Rain Blowing/Drip 506.5 I,III
Humidity 507.5
Salt Fog 509.5
Dust Blowing 510.5 I
Immersion* 512.5 I
Vibration 514.6 I
Shock 5516.6 II, IV
Also meets equivalent MIL-STD-810-C, -D, -E and -F.
* IC-F3400DT/DS/D, IC-F4400DT/DS/D only.
Ingress Protection Standard
F3400DT/DS/D, F4400DT/DS/D IP68 (Dust-tight and waterproof protection)

Supplied Accessories

  • Battery pack, BP-283
  • Belt clip, MB-133
  • Antenna & charger purchased separately
