IC-F52D UL (IS) IDAS UHF/VHF Portables

Icom

PRICE UPON REQUEST
This product will be shipped from: USA (International shipping restrictions may apply). Sold and shipped by Radiohaus America
Indicar produto
Dúvidas?
Aumentar fonte Diminuir fonte

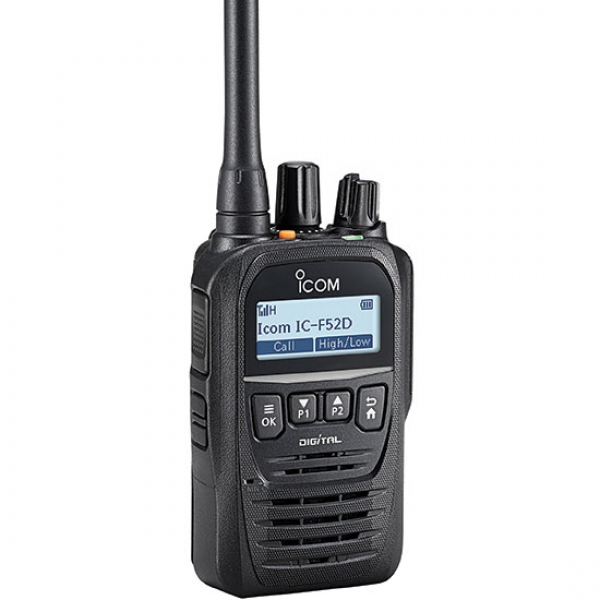

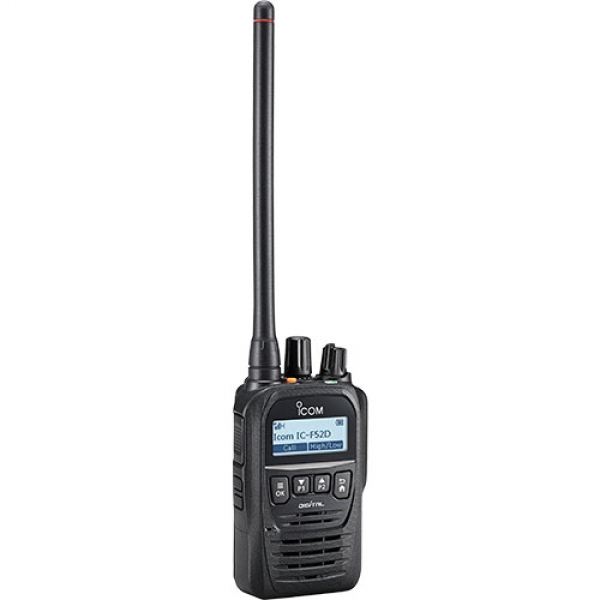

IC-F52D UL (IS) IDAS UHF/VHF Portables



Icom’s Smallest, Waterproof IDAS™ Handheld

The F52D series portables are the perfect radio to migrate from the F50/V series to IDAS digital. Small and lightweight the F52D series comes with dozens of modern features and functions customers will want. The portable also includes popular F50V features like submergibility, vibration alert, and voice recording/playback for up to 8 minutes. New features include built-in Bluetooth™, a continuous 20-position rotary selector and ON/OFF volume knob that’s tilted for easy access, better dot-matrix display with status icons, and OTAP. Icom is the choice when you want to take your communications to the next level.

Channels:

  512 channels w/128 zones

Output Power:

  5W

Frequencies:

  136-174, 380-470 or 450-512 MHz

Digital Conventional:

  IDAS built-in

Digital Trunking:

  Upgrade available

Programmable Keys:

  6

Waterproof Rating:

  IP67

Versions:

  Standard version or intrinsically safe version

Vibration Function

When pre-programmed 2-tone, 5-Tone, MDC, and/or IDAS signals are received, the radio can vibrate with enough force to be felt through clothing.

Voice Recorder

Turn on and off the recording manually (with a button) and it will automatically record every incoming call and every transmission from that time forward for up to eight (8) minutes. The F52D series also allows users to program the radio to automatically record all RX and TX all the time, and old messages will delete when the memory is full. Push a pre-programmed button on the radio allowing you to hear "the last message."

Safety Features

For emergency situations the F52D series includes an emergency key and four emergency functions: man down, motion detection, stationary detection and lone worker. The motion/stationary sensor sensitivity level is programmable in 10 levels for each function.

Intrinsically Safe Version

The hazard ready F52D UL/F62D UL is the perfect radio for commercial customers operating in harsh environments. The F52D UL/F62D UL with the intrinsically safe battery meet the ANSI/TIA-4950-A, ANSI/UL 121201 requirements for:

  • Intrinsically Safe: Division 1, Class I, Groups C, D
  • Class II, Groups E, F, G
  • Class III T3C
  • Non-incendive: Division 2, Class I, Groups A, B, C D



IDAS Features

The F52D series provides NXDN™ CAI-based IDAS digital model operation in IDAS conventional and multi-site conventional. The following IDAS features available:
  • Analog/digital conventional mixed mode operation
  • Upgrade to Type-D trunking
  • AMBE+2™ vocoder
  • Over-the-Air Programming with manager software
  • Over-the-Air Alias (OAA) sends own name with a call
  • Over-the-Air Update (OTAU) changes the repeater channel data and site code over the air (Type-D trunking)
  • Individual, group call
  • Status call and polling
  • Short data message
  • Transparent date mode

Additional Features

  • Hands-free communication with built-in Bluetooth®
  • Transparent data modem can transmit data at 9600bps over the radio
  • Channel voice announcement
  • Built-in 2-tone, 5-tone, CTCSS, DTCS & MDC1200 in analog
  • VOX (voice operated transmission) function
  • Tactical group function
  • Normal, priority and voting scan
  • Voting scan for site roaming
  • Digital voice scrambler (low level encryption)
  • Analog voice scrambler (inversion)

Specifications



General

Frequency coverage

F52D
136–174 MHz


F52D UL
136–174 MHz
F62D
400-470 MHz
450-512 MHz

F62D UL
350–400 MHz
400–470 MHz
450–512 MHz
450–520 MHz
Number of channels 512 channels /128 zones
Type of emission
F52D
16K0F3E*
14K0F3E
11K0F3E
8K50F3E
8K30F1E/D
4K00F1E/D

F52D UL
16K0F3E*
11K0F3E
8K50F3E
8K30F1E/D
4K00F1E/D
F62D
16K0F3E*
14K0F3E
11K0F3E
8K50F3E
8K30F1E/D
4K00F1E/D

F62D UL
16K0F3E*
11K0F3E
8K50F3E
8K30F1E/D
4K00F1E/D
Power supply requirement 7.5V DC nominal
Current drain
  Tx
  Rx


F52D
1.8A
500 mA / 170 mA
(Max. audio (internal SP)/Standby)

F52D UL
1.8A
500 mA / 170 mA
(Max. audio (internal SP)/Standby)
F62D
1.8A
600 mA /170 mA
(Max. audio (internal SP)/Standby)

F62D UL
1.8A
600 mA /170 mA
(Max. audio (internal SP)/Standby)
Antenna impedance 50Ω
Operating temperature range
–30 °C to +60 °C; –22 °F to +140 °F
Dimensions
(W × H × D; Projections not included)
F52D / F62D
56 × 91.5 × 29 mm; 2.2 × 3.6 × 1.1 in (with BP-290)

F52D UL / F62D UL
56 × 92 × 34.1 mm; 2.2 × 3.6 × 1.3 in (with BP-292UL)
Weight All versions
125g; 4.4 oz (main unit)

F52D / F62D
230g; 8.1 oz (BP-290, MBB-3)

F52D UL / F62D UL
270g; 9.5 oz (with BP-292UL and MBB-3)
Transmitter
Output power (Hi, L2, L1)
5W, 2W, 1W
Frequency stability
±1.0 ppm
Spurious emissions
80 dB typ.
FM hum and noise
F52D
57 dB typ. (@25 kHz),
55 dB typ. (@12.5 kHz)

F52D UL
57 dB typ. (@25 kHz),
55 dB typ. (@12.5 kHz)
F62D
57 dB typ. (@25 kHz),
56 dB typ. (@12.5 kHz)

F62D UL
57 dB typ. (@25 kHz),
56 dB typ. (@12.5 kHz)
Audio harmonic distortion
0.4% typ. (AF 1kHz 40% deviation)
FSK Error
1% typ. (@DVN/DN)
Receiver
Sensitivity
  Analog (12 dB SINAD)

  Analog (20 dB SINAD)


  Digital (1% BER)





  Analog (12 dB SINAD)

  Digital (1% BER)


F52D
0.23 µV typ.

–4.0 dBµV emf typ. (@25/20 kHz),
–1.4 dBµV emf typ. (@12.5 kHz)

–5.0 dBµV emf typ.
(0.28 µV typ. ) (@DVN),
–3.0 dBµV emf typ.
(0.35 µV typ. ) (@DN)

F52D UL
0.23 µV typ.

–5.0 dBµV emf typ.
(0.28 µV typ. ) (@DVN)
–3.0 dBµV emf typ.
(0.35 µV typ. ) (@DN)
F62D
0.23 µV typ.

–4.0 dBµV emf typ. (@25/20 kHz),
–1.1 dBµV emf typ. (@12.5 kHz)

–4.0 dBµV emf typ.
(0.32 µV typ. ) (@DVN),
–3.0 dBµV emf typ.
(0.35 µV typ. ) (@DN)

F62D UL
0.23 µV typ.

–4.0 dBµV emf typ.
(0.32 µV typ. ) (@DVN)
–3.0 dBµV emf typ.
(0.35 µV typ. ) (@DN)
Adjacent shannel selectivity
  Analog


  Digital



  Analog


  Digital
F52D
79 dB typ. (@25/20 kHz),
77 dB typ. (@12.5 kHz)

70 dB typ. (@DVN),
72 dB typ. (@DN)

F52D UL
79 dB typ. (@25/20 kHz),
77 dB typ. (@12.5 kHz)

70 dB typ. (@DVN),
72 dB typ. (@DN)
F62D
76 dB typ. (@25/20 kHz),
73 dB typ. (@12.5 kHz)

66 dB typ. (@DVN),
68 dB typ. (@DN)

F62D UL
76 dB typ. (@25/20 kHz),
73 dB typ. (@12.5 kHz)

66 dB typ. (@DVN),
68 dB typ. (@DN)
Spurious response rejection
F52D
76 dB typ.

F52D UL
76 dB typ.
F62D
78 dB typ.

F62D UL
78 dB typ.
Intermodulation rejectionsss
  Analog

  Digital


  Analog

  Digital
F52D
75 dB typ.

75 dB typ.

F52D UL
76 dB typ.

73 dBµV emf typ. (@DVN),
–40 dBm typical. (@DN)
F62D
74 dB typ.

74 dB typ.

F62D UL
74 dB typ.

73 dBµV emf typ. (@DVN),
–40 dBm typical. (@DN)
Audio output power
  Internal SP
  External SP


  Internal SP
  External SP
F52D / F62D
1300 mW typ. (at 5% distortion, 8Ω load)
1000 mW typ. (at 5% distortion, 8Ω load)

F52D UL / F62D UL
800 mW typ. (at 5% distortion, 12Ω load)
1000 mW typ. (at 5% distortion, 8Ω load)

Measurements made in accordance with TIA-603, EN300 086, EN301 166, EN300 113.
All stated specifications are subject to change without notice or obligation.

*25 kHz bandwidth is no longer available for FCC Part 90 licensees for USA versions.
DVN: Digital Very Narrow (6.25 kHz), DN: Digital Narrow (12.5 kHz). DN is for NXDN version only.

Applicable U.S. Military Specifications and IP Rating

Standard MIL 810 G
Method Proc
Low Pressure 500.5 I, II
High Temp. 501.5 I, II
Low Temp. 502.5 I, II
Temp. Shock 503.5 I-C
Solar Radiation 505.5 I
Rain Blowing/Drip 506.5 I, III
Humidity 507.5 II
Salt Fog 509.5
Dust Blowing 510.5 I
Immersion 512.5 I
Vibration 514.6 I
Shock 516.6 I, IV

Also meets equivalent MIL-STD-810-C, -D, -E and -F.


Ingress Protection Standard
Dust & Water IP67/66/55/54

Battery Life

F52D / F62D
Battery Pack Type Capacity Operating time*
BP-290 Li-ion 7.2 V 2010 mAh (typ.), 1910 mAh (min.) 13 hours (Approx.)
BP-294 Li-ion 7.2 V 3150 mAh (typ.), 3050 mAh (min.) 18.5 hours (Approx.)

F52D UL / F62D UL
Battery Pack Type Capacity Operating time*
BP-292UL Li-ion 7.2 V 2010 mAh (typ.), 1910 mAh (min.) 10 hours (Approx.)

* Tx: Rx: standby = 5:5:90 duty cycle. Power save function ON.

Supplied Accessories

F52D / F62D F52D UL / F62D UL - Intrinsically Safe
Battery Pack, BP-290
Belt Clip, MBB-3
Battery Pack, BP-292UL
Belt Clip, MBB-3
