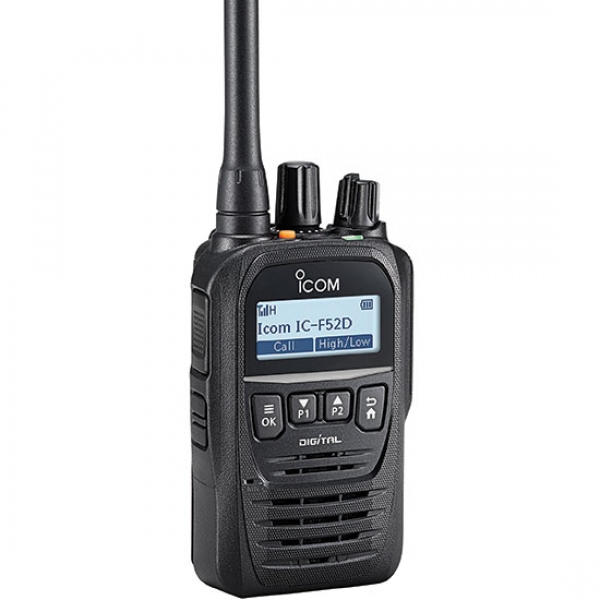

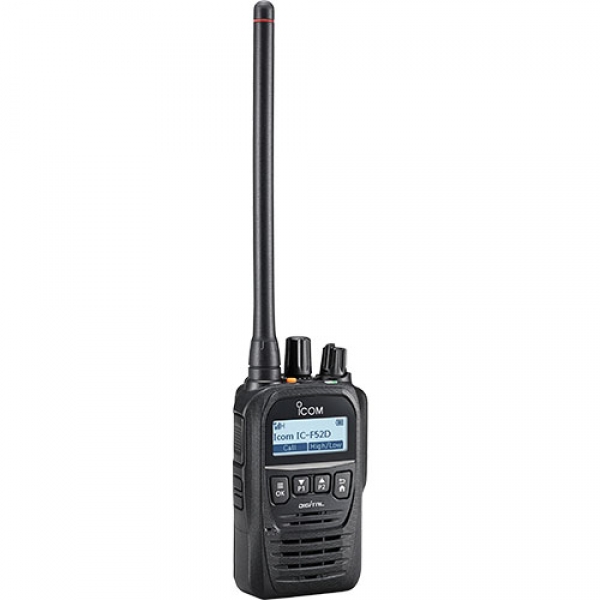

IC-F52D IDAS UHF/VHF Portables

The F52D series portables are the perfect radio to migrate from the F50/V series to IDAS digital. Small and lightweight the F52D series comes with dozens of modern features and functions customers will want. The portable also includes popular F50V features like submergibility, vibration alert, and voice recording/playback for up to 8 minutes. New features include built-in Bluetooth™, a continuous 20-position rotary selector and ON/OFF volume knob that’s tilted for easy access, better dot-matrix display with status icons, and OTAP. Icom is the choice when you want to take your communications to the next level.

Vibration Function

When pre-programmed 2-tone, 5-Tone, MDC, and/or IDAS signals are received, the radio can vibrate with enough force to be felt through clothing.

Voice Recorder

Turn on and off the recording manually (with a button) and it will automatically record every incoming call and every transmission from that time forward for up to eight (8) minutes. The F52D series also allows users to program the radio to automatically record all RX and TX all the time, and old messages will delete when the memory is full. Push a pre-programmed button on the radio allowing you to hear "the last message."

Safety Features

For emergency situations the F52D series includes an emergency key and four emergency functions: man down, motion detection, stationary detection and lone worker. The motion/stationary sensor sensitivity level is programmable in 10 levels for each function.

Intrinsically Safe Version

The hazard ready F52D UL/F62D UL is the perfect radio for commercial customers operating in harsh environments. The F52D UL/F62D UL with the intrinsically safe battery meet the ANSI/TIA-4950-A, ANSI/UL 121201 requirements for:

• Intrinsically Safe: Division 1, Class I, Groups C, D
• Class II, Groups E, F, G
• Class III T3C
• Non-incendive: Division 2, Class I, Groups A, B, C D

IDAS Features

• Analog/digital conventional mixed mode operation
• Upgrade to Type-D trunking
• AMBE+2™ vocoder
• Over-the-Air Programming with manager software
• Over-the-Air Alias (OAA) sends own name with a call
• Over-the-Air Update (OTAU) changes the repeater channel data and site code over the air (Type-D trunking)
• Individual, group call
• Status call and polling
• Short data message
• Transparent date mode

Additional Features

• Hands-free communication with built-in Bluetooth®
• Transparent data modem can transmit data at 9600bps over the radio
• Channel voice announcement
• Built-in 2-tone, 5-tone, CTCSS, DTCS & MDC1200 in analog
• VOX (voice operated transmission) function
• Tactical group function
• Normal, priority and voting scan
• Voting scan for site roaming
• Digital voice scrambler (low level encryption)
• Analog voice scrambler (inversion)

Measurements made in accordance with TIA-603, EN300 086, EN301 166, EN300 113.
All stated specifications are subject to change without notice or obligation.
*25 kHz bandwidth is no longer available for FCC Part 90 licensees for USA versions.
DVN: Digital Very Narrow (6.25 kHz), DN: Digital Narrow (12.5 kHz). DN is for NXDN version only.

Applicable U.S. Military Specifications and IP Rating

Also meets equivalent MIL-STD-810-C, -D, -E and -F.


Battery Life

* Tx: Rx: standby = 5:5:90 duty cycle. Power save function ON.

Supplied Accessories
