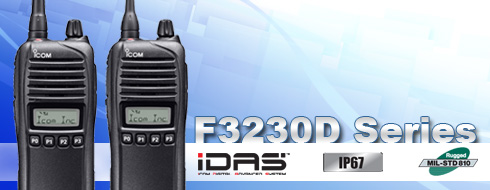

IC-F3230D Series IDAS™ Trunking Portables
IDAS™ Multi-site Trunking Radio with Superior Waterproof Protection
IDAS™ Digital Mode Operation
Go a step-above with the mid-level F3230D portable radio. The F3230D is designed to be clear and effective for any task at hand. The 1000 mW speakers make it easy to hear in noisy areas, the roaming scan function automatically finds the best connection and the 8-character LCD screen can provide useful information.
|
Channels:
|
|
128 |
|
Output Power:
|
|
5W VHF/4W UHF |
|
Frequencies:
|
|
136-174/350-400, 400-470, 450-512 |
|
Digital Conventional:
|
|
IDAS built-in |
|
Digital Trunking:
|
|
Built-in Type D single-site and multi-site |
|
Waterproof Rating:
|
|
IP67 |
IDAS™ Digital Mode Features
- In the multi-site trunking mode, if the signal condition worsens as the radio user moves, the roaming scan automatically finds a new site to retain the communication link and quality.
- PTT ID and ANI
- Status
- Radio check (RX)*
- Call alert
- Emergency
- ATB (All Trunks Busy) ring back
- SDM (Short Data Message)
- RAN (Radio Access Number)
- Stun/kill/revive (RX)*
- Remote monitor (RX)*
- Digital voice scrambler
- *TX: Transmit, RX: Receive
Easy to Hear in Noisy Areas
The built-in bridge-tied load (BTL) amplifier delivers a powerful 1000 mW * audio output from the large speaker. In addition, the digital modulation provides distinct clarity even at the fringes of the communication range.
* Typical with internal speaker
Channel Announcement
When you change the operating channel, the radio announces the channel number, convenient for making radio adjustments without having to look at the radio.
8-character LCD
An 8-character alphanumeric LCD with user-friendly icons shows a variety of information and operating status such as caller's name, received message, etc.
Roaming Scan
In the multi-site trunking mode, if the signal condition worsens as the radio user moves, the roaming scan automatically finds a new site to retain the communication link and quality.
Other Features
- CTCSS/DTCS encode/decoder (analog only)*
- Low battery alert
- Optional HM-HMHD717WP, waterproof speaker-mic
- Low battery alert
- Talk around function
- Surveillance function
- 2-step power save
- Time out timer
- Lone worker function
Note: F3230DT/F4230DT is NOT available in some countries. (Not available in the USA.)
Specifications
| General |
| Frequency coverage |
F3230D
136–174MHz
F4230D
400-470MHz
450-512MHz
|
| Number of channels |
128 channels/8 zones |
| Type of emission |
16K0F3E* / 11K0F3E / 8K50F3E / 4K00F1E /F1D |
| Channel spacing |
25* / 15 / 12.5 / 6.25 kHz |
| Power supply requirement |
7.5V DC nominal |
Current drain
Tx High
Rx Max. audio
Standby |
F3230D
1.3A
400mA
100mA |
F4230D
1.3A
400mA
100mA |
|
| Antenna impedance |
5OΩ |
| Operating temperature range |
| -30°C to +60°C; -22°F to +140°F |
|
| Dimensions (proj. not included) |
53×120×37 mm; 2.09×4.72×1.46 in (With BP-232WP) |
| Weight |
340g; 12oz (With MB-94R, BP-232WP & antenna) |
| Transmitter |
| Output power (at 7.5V DC) |
F3230D: 5W, 2W, 1W (hi, L2, L1)
F4230D: 4W, 2W, 1W (Hi, L2, L1) |
| Max. frequency deviation |
±5.0 kHz (wide)
±2.5 kHz (narrow) |
| Frequency stability |
|
| Spurious emissions |
F3230D: 75dB typ.
F4230D: 75dB typ. |
| FM Hum and noise |
F3230D: 52 / 46dB typ. (W/N)
F4230D: 46 / 40dB typ. (W/N) |
| Audio harmonic distortion |
1.0 / 2.0% typ. (AF 1kHz 40% deviation, W/N) |
| FSK Error |
2% typ. |
| External microphone connector |
3-conductor 2.5 (d) mm (1⁄10")⁄2.2Ω |
| Receiver |
Sensitivity
(at 12dB SINAD)
(at 5% BER) |
F3230D
0.23μV typ.
0.18μV typ. |
F4230D
0.24μV typ.
0.18μV typ. |
|
| Adjacent channel selectivity |
F3230D: 77 / 71 / 58dB typ. (W/N/D)
F4230D: 74 / 67 / 58dB typ. (W/N/D) |
| Spurious response rejection |
F3230D: 90dB typ.
F4230D: 80dB typ. |
| Intermodulation rejection |
F3230D: 75 / 75/70dB typ. (W/N/D)
F4230D: 76 / 76/72dB typ. (W/N/D) |
| Hum and noise |
F3230D: 48 / 42dB typ. (W/N)
F4230D: 46 / 40dB typ. (W/N) |
Audio output power (at 5% distortion)
Internal SP (with 12Ω load)
ExExternal SP (With 8Ω load) |
1000mW typ. (Internal SP, 8Ω load)
400mW typ. (External SP, 8Ω load) |
|
| External speaker connector |
2-conductor 3.5 (d) mm (1⁄8")") ⁄ 8Ω |
Measurements made in accordance with EIA/TIA-603.
All stated specifications are subject to change without notice or obligation.
* 25kHz bandwidth is no longer available for FCC Part 90 licensees for USA versions. Ask your dealer if you need 25kHz bandwidth.
Applicable U.S. Military Specifications and IP Rating
| Standard |
MIL 810G |
| Method |
Proc |
| Low Pressure |
500.5 |
I, II |
| High Temp. |
501.5 |
I, II |
| Low Temp. |
502.5 |
I, II |
| Temp. Shock |
503.5 |
I-C |
| Solar Radiation |
505.5 |
I |
| Rain Blowing / Drip |
506.5 |
I, III |
| Humidity |
507.5 |
II |
| Salt Fog |
509.5 |
– |
| Dust Blowing |
510.5 |
I |
| Immersion |
512.5 |
I |
| Vibration |
514.6 |
I |
| Shock |
516.6 |
I, IV |
Also meets equivalent MIL-STD-810-C, -D, -E and -F.
Ingress Protection Standard (F3230DT/DS, F4230DT/DS with BP-232WP)
Dust and water – IP67 (dust-right and waterproof protection)
All stated specifications are subject to change without notice or obligation.
