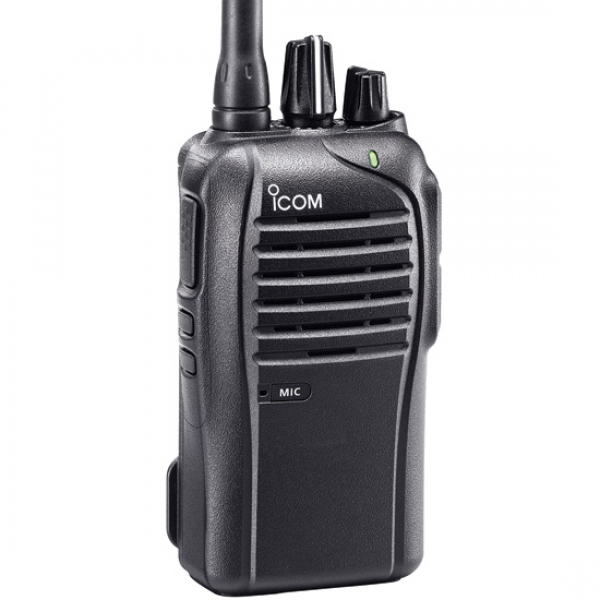

IC-F3210D Entry Level IDAS™ Trunking Portables VHF/UHF
Extend your Communication Reach with IDAS™ Multi-Site trunking
IDAS™ Digital Mode Operation
Whether its construction, education, or hotels, the F3210D series is ready to withstand any operation. Features such as the loud 45mm speakers and channel announcement prove that the radio can operate in the noisiest of conditions. Paired with the IDAS network for single and multisite trunking, the F3210D is ready for operations on the largest communications scale.
|
Channels:
|
|
16 |
|
Output Power:
|
|
5W VHF/4W UHF |
|
Frequencies:
|
|
136-174, 400-470, 450-512 |
|
Digital Conventional:
|
|
IDAS built-in |
|
Digital Trunking:
|
|
Built-in Type D single-site and multi-site |
|
Waterproof Rating:
|
|
IP54 |
IDAS™ Digital Mode Features
- PTT ID (TX)
- Block decode
- Radio check (RX)
- Call alert
- Emergency
- Individual/Group call
- RAN (Radio Access Number)
- Stun/kill/revive (RX)
- Remote monitor (RX)
- Digital voice scrambler
- ATB (All Trunks Busy) ring back
- *TX: Transmit, RX: Receive
Easy to Hear in Noisy Areas
The built-in bridge-tied load (BTL) amplifier delivers a powerful 800mW* audio output from the large 45mm speaker. In addition, the digital modulation provides distinct clarity even at the fringes of the communication range.
*Typical with internal speaker.
Channel Announcement
When you rotate the channel knob, the radio announces the channel number, convenient for making radio adjustments without having to look at the radio.
Internal VOX Capability
The radio has the internal VOX capability for hands-free operation. Optional compatible headset with plug adapter cable OPC-2004 can be used with the radio. Also, the VOX gain and VOX delay time are adjustable.
Roaming Scan
In the multi-site trunking mode, if the signal condition worsens as the radio user moves, the roaming scan automatically finds a new site to retain the communication link and quality.
Other Features
- CTCSS/DTCS encode/decoder (analog only)*
- Low battery alert
- 3-color LED
- Time out timer
- Lone worker function
- 2-step power save
- PC programmable
- Voting Scan
- Talk around function
- Surveillance function
Specifications
| General |
|
Frequency coverage
|
F3210D
136–174MHz
F4210D
400-470MHz
450-512MHz
|
| Number of channels |
16 channels |
| Type of emission |
16K0F3E* / 11K0F3E/8K50F3E / 4K00F1E / F1D |
| Channel spacing |
25* / 15 / 12.5 / 6.25 kHz |
| Power supply requirement |
7.5V DC nominal |
Current drain
Tx High (VHF)
Rx Max. audio
Standby |
F3210D
1.3A
400mA (internal SP)
90mA (digital mode) |
F4210D
1.3A
400mA (internal SP)
100mA (digital mode) |
|
| Antenna impedance |
5OΩ |
| Operating temperature range |
| -30°C to +60°C; -22°F to +140°F |
|
| Dimensions (proj. not included) |
58(cW) × 111.5(H) × 36.5(D) mm; 2.28×4.39×1.44in (with BP-265) |
| Weight |
320g; 11.3oz (With MB-124, BP-265 & antenna) |
| Transmitter |
| Output power (at 7.5V DC) |
F3210D: 5W, 2W, 1W (hi, L2, L1)
F4210D: 4W, 2W, 1W (Hi, L2, L1) |
| Max. frequency deviation |
±5.0 kHz (wide)
±2.5 kHz (narrow) |
| Frequency stability |
|
| Spurious emissions |
F3210D: 75/71dB typ. (W/N)
F4210D: 75dB typ. |
| FM Hum and noise |
F3210D: 52/46dB typ. (W/N)
F4210D: 50/44dB typ. (W/N) |
| Audio harmonic distortion |
0.5/0.8% typ. (AF 1kHz 40% deviation, W/N) |
| FSK Error |
2% typ. |
| External microphone connector |
3-conductor 2.5 (d) mm (1⁄10")⁄2.2Ω |
| Receiver |
Sensitivity
(at 12dB SINAD)
(at 5% BER) |
F3210D
0.23μV typ.
0.18μV typ. |
F4210D
0.22μV typ.
0.18μV typ. |
|
| Adjacent channel selectivity |
F3210D: 77/71/58dB typ. (W/N/D)
F4210D: 74/67/58dB typ. (W/N/D) |
| Spurious response rejection |
F3210D: 91dB typ.
F4210D: 80dB typ. |
| Intermodulation rejection |
75/75/70dB typ. (W/N/D) |
| Hum and noise |
48/42dB typ. (W/N) |
Audio output power (at 5% distortion)
Internal SP (with 12Ω load)
External SP (With 8Ω load) |
800mW typ. (Internal SP, 12Ω load)
400mW typ. (External SP, 8Ω load) |
| External speaker connector |
2-conductor 3.5 (d) mm (1⁄8")⁄8Ω |
Measurements made in accordance with EAIA-152-C/204D or TIA-603.
*25kHz bandwidth is no longer available for FCC Part 90 licensees for USA versions. Ask your dealer if you need 25kHz bandwidth.
Applicable U.S. Military Specifications and IP Rating
| Standard |
MIL 810 F |
| Method |
Proc |
| Low Pressure |
500.5 |
I, II |
| High Temp. |
501.5 |
I, II |
| Low Temp. |
502.5 |
I, II |
| Temp. Shock |
503.5 |
I-C |
| Solar Radiation |
505.5 |
I |
| Rain |
506.5 |
I, III |
| Humidity |
507.5 |
II |
| Salt Fog |
509.5 |
– |
| Dust Blowing |
510.5 |
I |
| Vibration |
514.6 |
I |
| Shock |
516.6 |
I, IV |
Also meets equivalent MIL-STD-810-C, -D -E and -F.
Ingress Protection Standard (F3210D, F4210D with BP-265)
Dust and water – IP54 (dust-protection and water resistant)
All stated specifications are subject to change without notice or obligation.
Supplied Accessories
- Battery pack, BP-265
- Antenna
- Belt clip, MB-124
- Charger, BC-193
