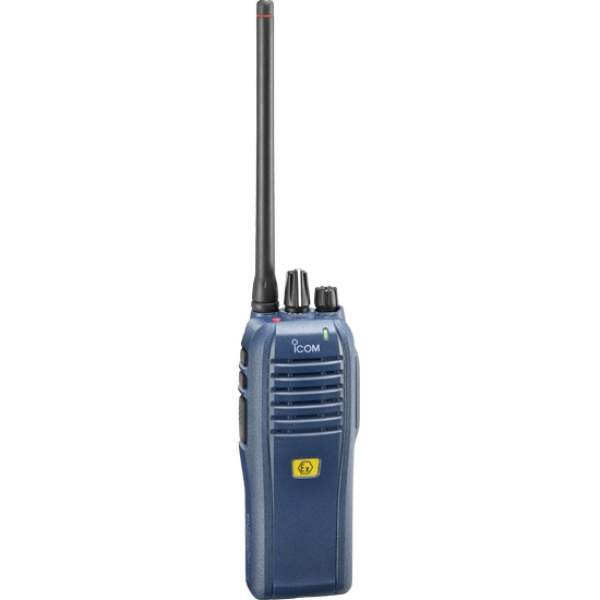

IC-F3201DEX IECEx/ATEX Intrinsically Safe IDAS VHF/UHF
IECEx/ATEX Intrinsically Safe IDAS VHF/UHF Portables
Safe and reliable communications is a must in potentially explosive atmospheres. The F3201DEX series operates in both analog and IDAS digital modes and can be used with any existing analog two-way radios. Digital functions include multi-site conventional and Type-D single site trunking. These IDAS radios include a 15-bit digital voice scrambler and voting scan for multi-site conventional operation. The F3201DEX series should be your radio choice for use in hazardous environments.
|
Channels:
|
|
16 channels |
|
Output Power:
|
|
1W |
|
Frequencies:
|
|
136-174 MHz, 440-470 MHz |
|
Waterproof Rating:
|
|
IP67 |
|
Programmable Keys:
|
|
3 |
ATEX (Atmospheres Explosibles) European Standard
This is the European Union directive to which all two-way radios must adhere if used in potentially explosive environments. ATEX and IEC have technically identical standards for electrical equipment since 2006. The F3201DEX series will provide some of the highest ATEX Gas, Dust and Mining Protection.
|
ATEX
Mining Protection
|
I
|
M2
|
Ex
|
ib
|
I
|
Mb
|
Mb = Mining equipment protection level: High protection
|
| |
I = Explosion group, I = Methane
|
| |
ib = Intrinsic safety
|
| |
Ex = Explosion proof equipment
|
| |
M2 = This equipment is intended to be de-energized in the event of an explosive atmosphere forming
|
| |
I = Equipment group 1 = mining above and below ground
|
|
ATEX
Dust Protection
|
II
|
2
|
D
|
Ex
|
ib
|
IIIC
|
T110°C
|
Db
|
Db = Dust equipment protection level: High protection
|
| |
T110°C = Maximum temperature of device surface
|
| |
IIIC = Dust group: Conductive dust
|
| |
ib = Intrinsic safety
|
| |
Ex = Explosion proof equipment
|
| |
D = Dust
|
| |
2 = High protection
|
| |
II = Equipment group II = other locations endangered by explosive atmosphere (i.e. refineries)
|
|
ATEX
Gas Protection
|
II
|
2
|
G
|
Ex
|
ib
|
IIC
|
T4
|
Gb
|
Gb = Gas equipment protection level: High protection
|
| |
T4 = Device surface temperature will not exceed 135°C
|
| |
IIC = Protection gas group: Hydrogen, Acetylene
|
| |
ib = Intrinsic safety
|
| |
Ex = Explosion proof equipment
|
| |
G = Gas
|
| |
2 = High protection
|
| |
II = Equipment group II = other locations endangered by explosive atmosphere (i.e. refineries)
|
Safety Features
The F3201DEX series has a number of built-in safety features in analog mode. The lone worker function detects when the radio is not operated for a preset period and a beep sounds requiring the user to push a button. If no button is pushed within the preset time, an emergency signal automatically transmits and alerts co-workers or dispatcher. The man down function sends an emergency signal if left in a horizontal position.
In both analog and digital mode, the user can program the red Emergency button to send an emergency tone when pushed.
Other Features
- Channel announcement
- 2-tone, 5-tone, CTCSS and DTCS built-in for analog mode
- MDC1200 PTT ID and emergency transmission
- DTMF autodial
- Low electrical resistivity body
Specifications
| General |
|
Frequency coverage
|
F3201DEX
136–174MHz |
F4201DEX
400–470MHz |
|
| Number of channels |
16 channels |
| Type of emission |
11K0F3E, 8K50F3E, 4K00F1E/F1D |
| Channel spacing |
12.5 / 6.25 kHz |
| Power supply requirement |
7.4V DC nominal |
Current drain
Tx High (VHF)
Rx Max. audio/standby |
F3201DEX
550mA
300mA (Internal SP)/110mA |
F4201DEX
550mA
300mA (Internal SP)/110mA |
|
| Antenna impedance |
5OΩ |
| Operating temperature range |
| –20°C to +55°C; –4°F to +131°F |
|
| Dimensions (proj. not included) |
63×144×50 mm; 2.48×5.67×1.97 in (With BP-277EX) |
| Weight |
F3201DEX
258g; 9.1 oz (Radio only)
466g; 1.03 lb (With MB-94EX,
BP-277EX & FA-SC55V) |
F4201DEX
250g; 8.8 oz (Radio only)
460g; 1.01 lb (With MB-94EX,
BP-277EX & FA-SC57U) |
|
| Transmitter |
| Output power (at 7.4V DC) |
1W, 0.8W, 0.6W (Hi, L2, L1) |
| Max. permissible deviation |
±2.5kHz (Narrow) |
| Frequency stability |
|
| Spurious emissions |
66dB min. |
| FM harmonic distortion |
F3201DEX
46dB typ. (Narrow) |
F4201DEX
40dB typ. (Narrow) |
|
| Audio harmonic distortion |
1.5% typ. (Narrow @ AF 1kHz 40% deviation) |
| FSK Error |
F3201DEX
2.0% typ. (Digital) |
F4201DEX
1.5% typ. (Digital) |
|
| External microphone connector |
14-pin multi-connector/2.2kΩ |
| Receiver |
Sensitivity
Analog (at 12dB SINAD)
Digital (at 5% BER) |
F3201DEX
0.24μV typ.
–8dBμV emf typ. |
F4201DEX
0.22μV typ.
–9dBμV emf typ. |
|
| Adjacent channel selectivity |
F3201DEX
70/62dB typ. (Narrow/Digital) |
F4201DEX
66/57dB typ. (Narrow/Digital) |
|
| Spurious response |
F3201DEX
85dB typ. (Narrow),
87dBμV emf typ. (Digital) |
F4201DEX
75dB typ. (Narrow),
79dBμV emf typ. (Digital) |
|
| Intermodulation |
F3201DEX
75/67dB typ. (Narrow/Digital) |
F4201DEX
74/73dB typ. (Narrow/Digital) |
|
| Hum and noise |
F3201DEX
43dB typ. (Narrow) |
F4201DEX
37dB typ. (Narrow) |
|
| Audio output power |
400mW typ. (at 5% distortion with 32Ω load) |
| External speaker connector |
14-pin multi-connector/32Ω |
Measurements made in accordance with TIA-603, EN 300-086, EN 301-166.All stated specifications are subject to change without notice or obligation.
Applicable U.S. Military Specifications and IP Rating
| Standard |
MIL 810 G |
| Method |
Proc |
| Low Pressure |
500.5 |
I, II |
| High Temp. |
501.5 |
I, II |
| Low Temp. |
502.5 |
I, II |
| Temp. Shock |
503.5 |
I-C |
| Solar Radiation |
505.5 |
I |
| Rain Blowing/Drip |
506.5 |
I, III |
| Humidity |
507.5 |
II |
| Salt Fog |
509.5 |
– |
| Dust Blowing |
510.5 |
I |
| Immersion |
512.5 |
I |
| Vibration |
514.6 |
I |
| Shock |
516.6 |
I, IV |
Also meets equivalent MIL-STD-810-C, -D, -E and -F.
| Ingress Protection Standard |
| Dust & Water |
IIP67 (Dust-tight and waterproof) |
Suppplied Accessories
- Battery pack, BP-277EX
- Battery charger, BC-212EX
- Belt clip, MB-94EX
- AC adapter, BC-123S
- Antenna
