IC-F1100D IDAS™ VHF/UHF Portables

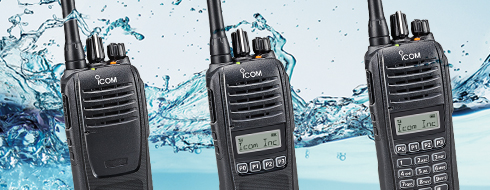

Compact, Waterproof IDAS Portables
The F1100D/F2100D Series is a sleek portable radio that fits nicely in your hand and designed to be the go to entry to mid level digital radio. Three model choices, basic – no display, simple – display with simple keypad, and full – display and fully DTMF keypad, include an array of features such as IDAS digital mode operation in IDAS conventional and multi-site conventional, intelligent emergency functions, and a rugged waterproof & dustproof chassis. A high-power handling capacity speaker and acoustic improvements provide class-leading (1500 mW) loud and clear audio. This radio is ideal to meet the needs of a wide range of businesses including education, hospitality, and retail.
Channels:
|
|
16 or 128 channels |
Output Power:
|
|
5W (VHF & 400-470) / 4W (450-512) |
Frequencies:
|
|
136-174 MHz
400-470 or 450-512 MHz |
Waterproof rating:
|
|
IP67 |
Programmable Keys:
|
|
3 or 7 |
Versions:
|
|

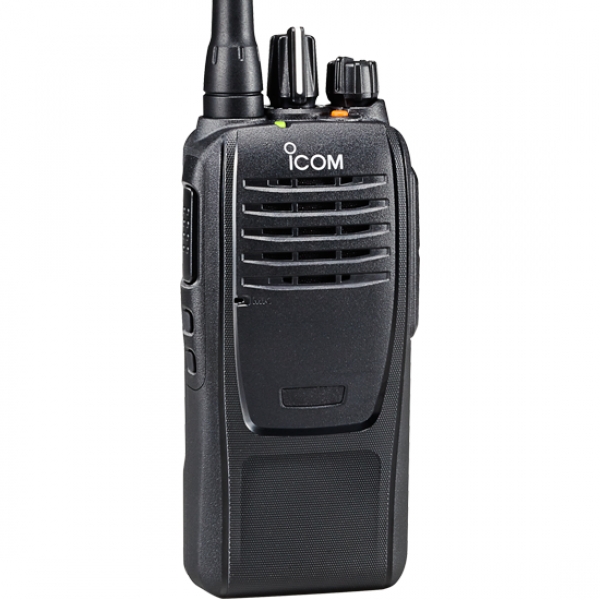

No display

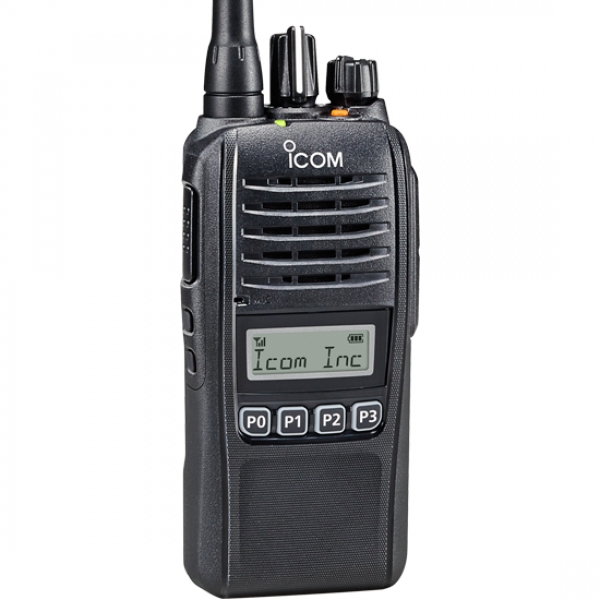

Display with simple keypad

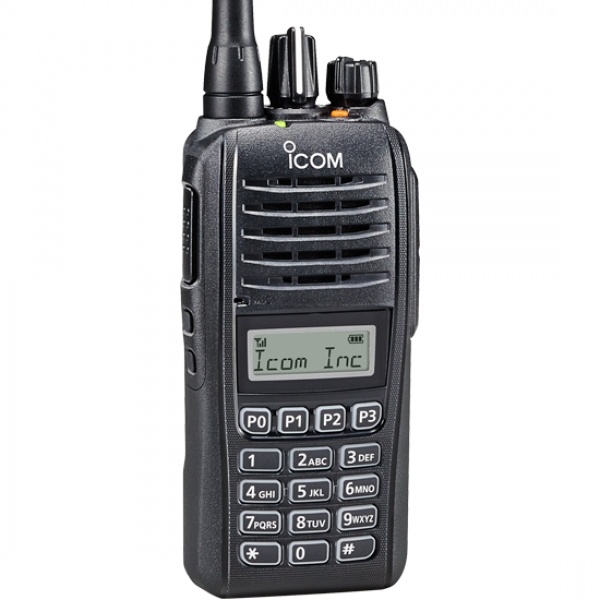

Display with full DTMF keypad |
IDAS™ Features
The F1100D series provides NXDN™ CAI-based IDAS digital model operation in IDAS conventional and multi-site conventional. The following IDAS features are available:
- IDAS™ Type-D single-site trunking
- Analog/digital conventional mixed mode operation
- AMBE+2™ vocoder
- Over-the-Air updates the Alias list (call list) without programming (LCD versions)
- Individual, group and all call
- Status all and polling
- Short data messages (LCD versions)
- Call alert
- Radio check (RX only)
- The call list can save up to 500 ID numbers for IDAS or MDC1200 signaling system to show in the alias name
Safety & Security Features
For emergency situations the F1100D series includes an emergency key and four emergency functions: man down, motion & stationary detection, lone worker, and surveillance function.
The F1100D Series also includes low-level, 16 bit Digital Voice Encryption.
Built-in Analog Signaling
The F1100 series comes all the popular analog signaling including 2-Tone, 5-Tone, CTCSS and DTCS for group communication and selective calling. MDC features include PTT ID, Emergency (TX/RX), Radio Check (RX), Stun (RX), and Revive (RX).
Additional Features
- Channel announcement
- Siren sound for security alarm
- AquaQuake™ to clear water away from the speaker grill
- DTMF auto dial memories
- "Shift key" function increase the number of programmable key assignments
- Three color LED
Specifications
General |
Frequency coverage (MHz) |
F1100D/DS/DT
136–174MHz
|
|
F2100D/DS/DT
400–470MHz
450–512 MHz |
|
Number of channels |
F1100DT/DS
128 channels
8 zones |
|
F1100D
16 channels |
|
F2100DT/DS
128 channels
8 zones |
|
F2100D
16 channels |
|
Type of Emission
Analog:
Digital (IDAS): |
11K0F3E
4K0F1D, 4F0F1E |
Power supply requirement |
7.5V DC nominal |
Current drain
TX High
RX Max. auidio/ Sandby |
F1100D/DS/DT
1.3 A
520 mA /110 mA
(Max. audio (internal SP)/Standby) |
|
F2100D/DS/DT
1.4 A4
520 mA /110 mA
(Max. audio (internal SP)/Standby) |
|
Antenna impedance |
50Ω |
Operating temperature range |
–30°C to +60°C; –22°F to +140°F (Radio specification) |
Dimensions (W×H×D)
(Projections not included) |
F1100DS/D, F2100DS/D:
52.2 × 111.8 × 29.4 mm; 2.1 × 4.4 × 1.2 in (With BP-280)
F1100DT, F2100DT:
52.2 × 111.8 × 34.1 mm; 2.1 × 4.4 × 1.3 in (With BP-280) |
Weight (With BP-280 & MB-133) |
F1100D, F2100D: 260 g; 9.2 oz
F1100DS, F2100DS: 270 g; 9.5 oz
F1100DT, F2100DT: 280 g; 9.9 oz |
Transmitter |
Output power (Hi, L2, L1) |
F1100D/DS/DT
5W, 2W, 1W |
|
F2100D/DS/DT
4W, 2W, 1W |
|
Max. frequency deviation |
± 5.0 kHz (25 kHz), ±4.0 kHz (20 kHz), ±2.5 kHz (12.5 kHz) |
Spurious emissions |
70dB minimum |
Frequency stability |
±1.0ppm |
Audio harmonic distortion |
0.7% typ. (25 kHz), 0.9% typical (20 kHz)
1.0% typical (12.5 kHz) (at AF 1 kHz 40% deviation) |
FM Hum and Noise
(without CCITT filter) |
F1100D/DS/DT
40 dB typical (12.5 kHz) |
|
F2100D/DS/DT
44 dB typical (12.5 kHz) |
|
Residual modulations
(with CCITT filter) |
F1100D/DS/DT
52 dB typical (25 kHz)
50 dB typical (20 kHz) |
|
F2100D/DS/DT
54 dB typical (25 kHz)
52 dB typical (20 kHz), |
|
FSK error |
5.0% max. |
Ext. microphone connector |
3-conductor 2.5 (d) mm (1⁄10")⁄2.2kΩ |
Receiver |
Sensitivity
(at 12dB SINAD)
(at 20 dB SINAD)
(at 5% BER)
|
F1100D/DS/DT
0.21 μV typical
–4 dBμV typical emf
–8 dBμV typical emf
(0.20 μV typical) |
|
F2100D/DS/DT
0.24 μV typical
–5 dBμV typ. emf (25/20 kHz)
–2 dBμV typ. emf (12.5 kHz)
–8 dBμV typical emf
(0.20 μV typical) |
|
Adjacent channel selectivity |
F1100D/DS/DT
77 dB typ. (25 kHz)
74 dB typ. (12.5 kHz)
69 dB typ. (12.5 kHz)
59 dB typ. (digital) |
|
F2100D/DS/DT
76 dB typ. (25 kHz)
75 dB typ. (12.5 kHz)
69 dB typ. (12.5 kHz)
58 dB typ. (digital) |
|
Spurious response |
80dB typical |
Intermodulation rejection |
F1100D/DS/DT
75 dB typ. (25/12.5 kHz)
71 dB typ. (digital) |
|
F2100D/DS/DT
77 dB typ. (25/12.5 kHz)
70 dB typ. (digital) |
|
Hum and noise
(With CCITT filter)
(Without CCITT filter) |
F1100D/DS/DT
47 dB typ. (25 kHz)
43 dB typ. (12.5 kHz)
52 dB typ. (25 kHz)
50 dB typ. (20 kHz) |
|
F2100D/DS/DT
42 dB typical (12.5 kHz)
50 dB typ. (25 kHz)
48 dB typ. (20 kHz) |
|
AF output power (at 5% distortion)
Internal SP
External SP |
1500 mW typical (With an 8 Ω load)
800 mW typical (With an 8 Ω load) |
Ext. speaker connector |
2-conductor 3.5 (d) mm (1⁄8″)/8Ω |
All stated specifications are subject to change without notice or obligation. Measurements made in accordance with TIA-603 (USA/EXP) or EN 300-086, EN 301-166 (EUR). The IC-F1100DT/DS/D VHF versions are under evaluation as of May 2018.
Applicable U.S. Military Specifications & IP Rating
Icom makes rugged products that meet MIL-STD requirements and strict environmental standards as follows.
Standard |
MIL 810 G |
Method |
Proc |
Low Pressure |
500.5 |
I, II |
High Temp. |
501.5 |
I, II |
Low Temp. |
502.5 |
I, II |
Temp. Shock |
503.5 |
I-C |
Solar Radiation |
505.5 |
I |
Rain Blowing/Drip |
506.5 |
I, III |
Humidity |
507.5 |
II |
Salt Fog |
509.5 |
– |
Dust Blowing |
510.5 |
I |
Immersion |
512.5 |
I |
Vibration |
514.6 |
I |
Shock |
516.6 |
I, IV |
Also meets equivalent MIL-STD-810-C, -D, -E and -F.
Ingress Protection Standard |
Dust & Water |
IP67/55/54 |
Supplied Accessories
- Battery pack, BP-280
- Belt clip, MB-133
- Antenna
- Desktop charger, BC-213*
- AC adapter, BC242*
*Included with some versions only.
|
|
