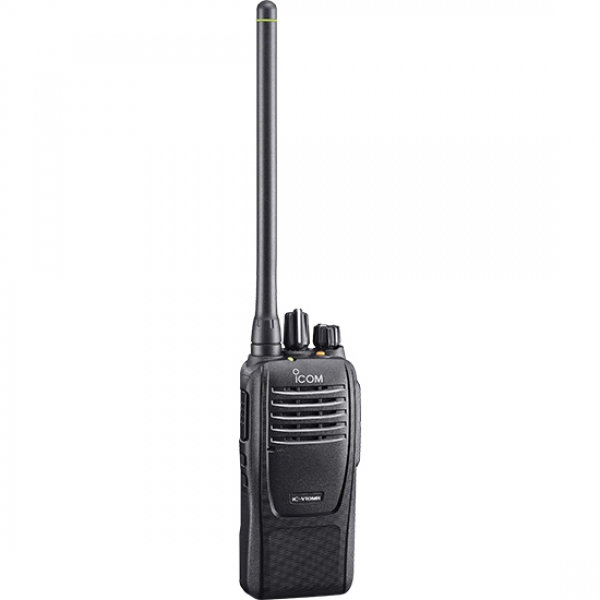

IC-V10MR Multi-Use Radio Service (MURS) Transceiver
Multi-Use Radio Service (MURS) Transceiver
The V10MR is a professional-grade, license-free radio is ready for any kind of operation. Take advantage of the large communication range*: up to 250,000 square feet in buildings, 20 floors, and up to two miles in a traditional worksite. The long battery life can last up to 14 hours. This radio is suited for service, education, health, tourism, personal use, and more!
*Ranges may differ depending on operating environment
Channels:
|
|
16 channels |
Output Power:
|
|
2W |
Frequencies:
|
|
151.820, 151.880, 151.940, 154.570, 154.600 MHz |
Waterproof Rating:
|
|
IP67 |
Built-tough
The V10MR is built to exceed military standards specifications (MIL-SPEC). It passed multiple drop tests from 1.5m on six kinds of surfaces to ensure durability during operation. With a strong waterproof rating, use the V10MR in rainstorms. You can also rinse out the radio from any dirt and debris.
Enhanced Security
These are 16 channel radios that utilizes 5 frequencies as well as 2-Tone, MDC, CTCSS and DTCS capabilities to use selective call and reject un-intended calls for quiet stand-by. This allows users to program the channels with the specific frequency and signaling type needed, practically eliminating interference from other users of these license free channels.
Emergency Ready
Come prepared to alert your team with several of the built-in emergency call functions. When pressed, the orange button automatically sends out an emergency call to other radios. Other functions include Lone Worker, Man Down, and Motion Detection.
- Lone Worker: When a user does not respond back for a certain period of time.
- Man Down: When a user has fallen and the radio remains horizontal.
- Motion Detection: When the radio detects sudden or strenuous movements.
Other Features
- 1500 mW loud speaker
- VOX function for hands-free operation
Specifications
General |
Usable Frequencies and Bandwidth |
151.820 MHz (11.25 kHz)
151.880 MHz (11.25 kHz)
151.940 MHz (11.25 kHz)
154.570 MHz (20.00 kHz)
154.600 MHz (20.00 kHz) |
Memory Channels |
16 channels |
Transmit Output Power |
2W (High),
1W (Mid),
0.5W (Low) |
Receiver Sensitivity |
0.25 µV (typ.) for 12 dB SINAD |
Squelch Sensitivity |
0.25 µV (typ.) at squelch threshold point |
Audio output power
Internal SP
External SP |
1.5W (typ.) at 5% distortion, 8Ω load
0.4W (typ.) at 5% distortion, 8Ω load |
Antenna Impedance |
50Ω |
Power Supply Voltage |
7.5V |
Current drain
Tx High
Rx Standby.
Rx Max. Audio |
0.9A
77 mA
500 mA |
Dimensions (with BP-279) |
2.1" (W) x 4.4" (H) x 1.0" (D) inches |
Weight |
240 g; 8.5 oz |
All stated specifications are subject to change without notice or obligation.
Applicable U.S. Military Specifications
Standard |
MIL 810 G |
Method |
Proc |
Low Pressure |
500.5 |
I, II |
High Temp. |
501.5 |
I, II |
Low Temp. |
502.5 |
I, II |
Temp. Shock |
503.5 |
I-C |
Solar Radiation |
505.5 |
I |
Rain Blowing/Drip |
506.5 |
I, III |
Humidity |
507.5 |
II |
Salt Fog |
509.5 |
- |
Dust Blowing |
510.5 |
I |
Immersion |
512.5 |
I |
Vibration |
514.6 |
I |
Shock |
516.6 |
I, IV |
Supplied Accessories
- Antenna, FA-SC28V
- Battery pack, BP-279
- Belt clip, MB-133
- Charger, BC-213
- AC adapter, BC-242
