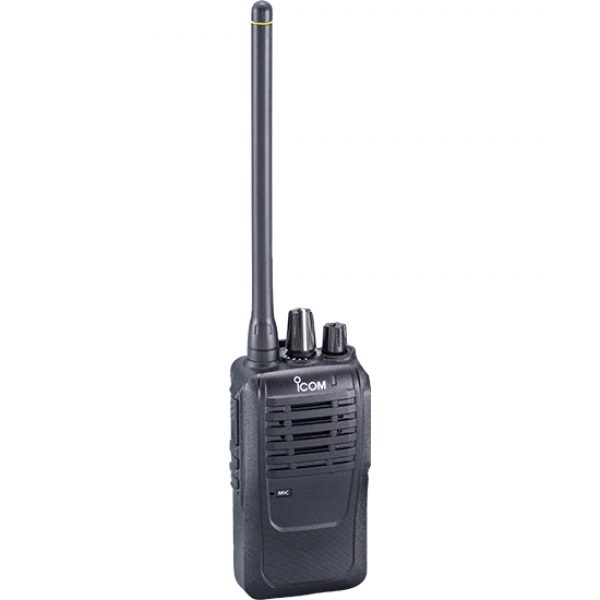

IC-V3MR Multi-Use Radio Service (MURS) Transceiver
Multi-Use Radio Service (MURS) Transceiver
For basic operations, the V3MR provides an entry level license free Multi-Use Radio Service (MURS) option. Everything to start communications comes ready to use straight out of the box, including a li-ion battery, antenna, and a charger. This simple and professional grade two-way radio is fit for hospitality, construction, personal use, and more.
|
Channels:
|
|
16 channels |
|
Output Power:
|
|
2W |
|
Frequencies:
|
|
151.820, 151.880, 151.940, 154.570, 154.600 MHz |
|
Waterproof Rating:
|
|
IP54 |
Communication Range
A powerful 1500 mW speaker and the basic range for a MURS radio make it ideal for various industries.
- Up to 250,000 sq ft in a building, suited for warehouses, restaurants, and education.
- Up to 20 floors in a building, great for hospitality, retail, or hospitals.
- Up to 2 miles in a work site, perfect for construction, campsites, and hiking.
Communication ranges may differ depending on operating environment or weather conditions, etc.
Long Lasting Li-ion Battery
An outstanding battery capacity that can last up to 24-hours. This is perfect to exceed the standard workday and more. Even those who forget to charge the radio when their shift is over will have some operation time remaining.
Heavy Duty Construction
For any project in the rain, splashes in the mud, or drops on concrete, the V3MR’s compact and water-resistant chassis can withstand a daily worksite’s environment.
Other Features
- VOX function
- MDC PTT ID transmit
- CTCSS tone and DTCS code
- 2-step low battery beep
- Lone Worker and Emergency features
Specifications
| General |
| Usable Frequencies and Bandwidth |
151.820 MHz (11.25 kHz)
151.880 MHz (11.25 kHz)
151.940 MHz (11.25 kHz)
154.570 MHz (20.00 kHz)
154.600 MHz (20.00 kHz) |
| Memory Channels |
16 channels |
| Transmit Output Power |
2W (High),
1W (Mid),
0.5W (Low) |
| Receiver Sensitivity |
0.25 µV (typ.) for 12 dB SINAD |
| Squelch Sensitivity |
0.25 µV (typ.) at squelch threshold point |
Audio output power
(at 5% distortion, 8Ω load)
Internal SP
External SP
HM-222HLWP |
1.5W (typ.)
0.4W (typ.)
1.5W (typ.) |
| Antenna Impedance |
50Ω |
| Power Supply Voltage |
7.2V |
Current drain
Tx High
Rx Standby.
Rx Max. Audio |
0.9A
77 mA
500 mA |
| Dimensions (with BP-298) |
2.3" (W) x 4.4" (H) x 1.4" (D) inches |
| Weight |
265 g; 9.3 oz |
All stated specifications are subject to change without notice or obligation.
Applicable U.S. Military Specifications
| Standard |
MIL 810 G |
| Method |
Proc |
| Low Pressure |
500.5 |
I, II |
| High Temp. |
501.5 |
I, II |
| Low Temp. |
502.5 |
I, II |
| Temp. Shock |
503.5 |
I-C |
| Solar Radiation |
505.5 |
I |
| Rain Blowing/Drip |
506.5 |
I, III |
| Humidity |
507.5 |
II |
| Salt Fog |
509.5 |
- |
| Dust Blowing |
510.5 |
I |
| Vibration |
514.6 |
I |
| Shock |
516.6 |
I, IV |
| Ingress Protection Standard |
| Dust & Water |
IP54 (Dust-protection and splash resistant) |
Supplied Accessories
- Antenna, FA-SC28V
- Battery pack, BP-298
- Belt clip, MB-124
- Charger, BC-240
- AC adapter, BC-242
