IC-F6061D Analog/Digital, LTR, IDAS (NXDN)
Mobile VHF/UHF Two Way Radio (350-400MHz)
The F5061 / F6061 Mobile Transceiver is designed for use by delivery service, public safety and transportation operators. The F5061 / F6061 is a high power, multi-mode land mobile mobile radio with 50 watts (VHF version) or 45 watts (UHF version). It offers basic LTR™ /Conventional mode operation for efficient trunking operation without the need for an add-on module.It is also available in IDAS™ for digital operation. With a wide frequency range and large 512 channel capacity with 128 zones, the ICF5061/D / F6061/D is powerful mobile two way radio with maximum flexibility.
The IC-F5061 / F6061 has a dot matrix, multi-function LCD display and a front mounted speaker capable of clear and loud audio. The front panel is also detachable when used with an optional remote control unit and separation cable for flexible installation in a limited space.The F5061 / F6061 has built-in 2-Tone, 5-Tone, CTCSS and DTCS capabilities and multiple tone codes can be decoded on a channel. The radio case is heavy duty and is rated IP54 for dust and water resistance.

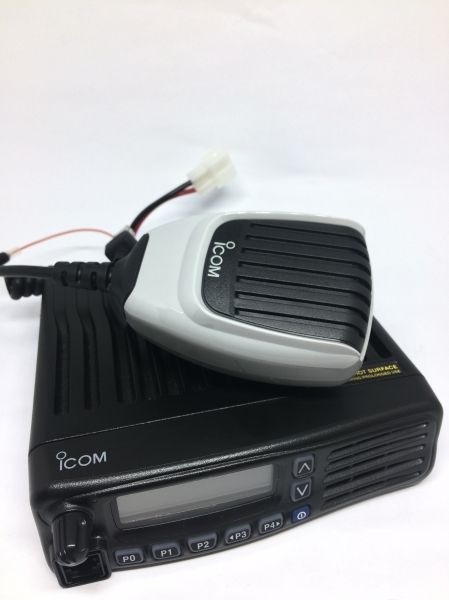

The IC-F5061 / F6061 comes with an HM-148G handheld microphone, mic hanger, DC power cable, mounting kit and hardware, key assign stickers, and user manual.
Note: Requires the use of an additional antenna (not included).
Icom IC-F6061 Features
- 512 Channels
- 136–174 MHz VHF Frequencies (VHF Version)
- 400–470 MHz UHF Frequencies (UHF Version)
- Privacy Codes
- 50W VHF/45W UHF Transmit Power
- Repeater Capable
- Emergency Alert
- Inversion-Type Voice Scrambler
- Caller ID
- Call Tones
- Enhanced Scanning
- Scan Channel Delete
- Dot Matrix Backlit Display
- Detachable Front Panel
- Front Panel Speaker
- Signal Strength Indicator
- 8 DTMF Autodial Memories
- MDC 1200 Compatible
- IDAS™ System Digital Mode Ready (Analog Version Requires Optional Board)
- IDAS™ NXDN (Digital Versions)
- Basic LTR™/Conventional Mode Operation
- 2 Slots For Additional Option Boards
- Power-on Password Function
- Two-tone and Five-tone Codes
- Embedded ESN
- Radio stun, kill and revive functions disable/Re-enable
- Busy repeater lockout function
- Surveillance function
- Convenient key assign sticker is supplied
- Microphone hanger action programmable
- Ignition sensing line
- ±1ppm frequency stability
- Lone worker function
- Escalarting alert
- Audio Accessory Connector
- D-SUB 25 pin ACC connector
- Military Specifications
- IP54 Dust and Water Resistant
- Flashable CPU for future upgrade
- Two Year Manufacturer Warranty
Included with the Icom Icom IC-F6061
- Icom IC-F5061, F5061D, F6061 or F6061D Mobile Two Way Radio (Multiple Versions Available)
- Hand Microphone (HM-148G)
- DC Power Cable
- Mounting Bracket Kit
- Microphone Hanger
- Key Assign Stickers
- Owner's Manual
Icom Icom IC-F5061/F6061 Specifications
-
Dimensions (W×H×D): 6.3×1.77×5.91 in (160×45×150 mm)
-
Weight (approx.): 2.9 lb (1.3 kg)
-
Antenna connector type: UHF Female (SO-239)
