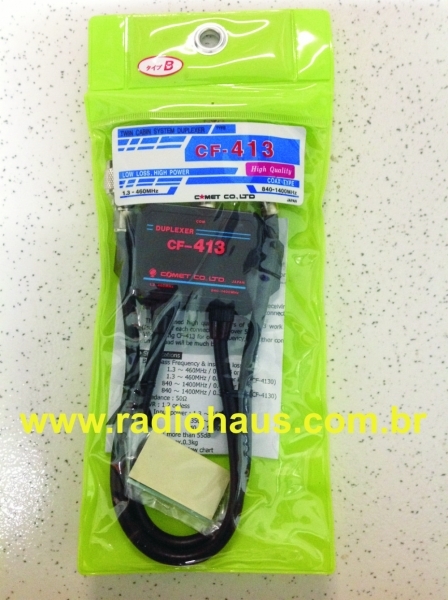

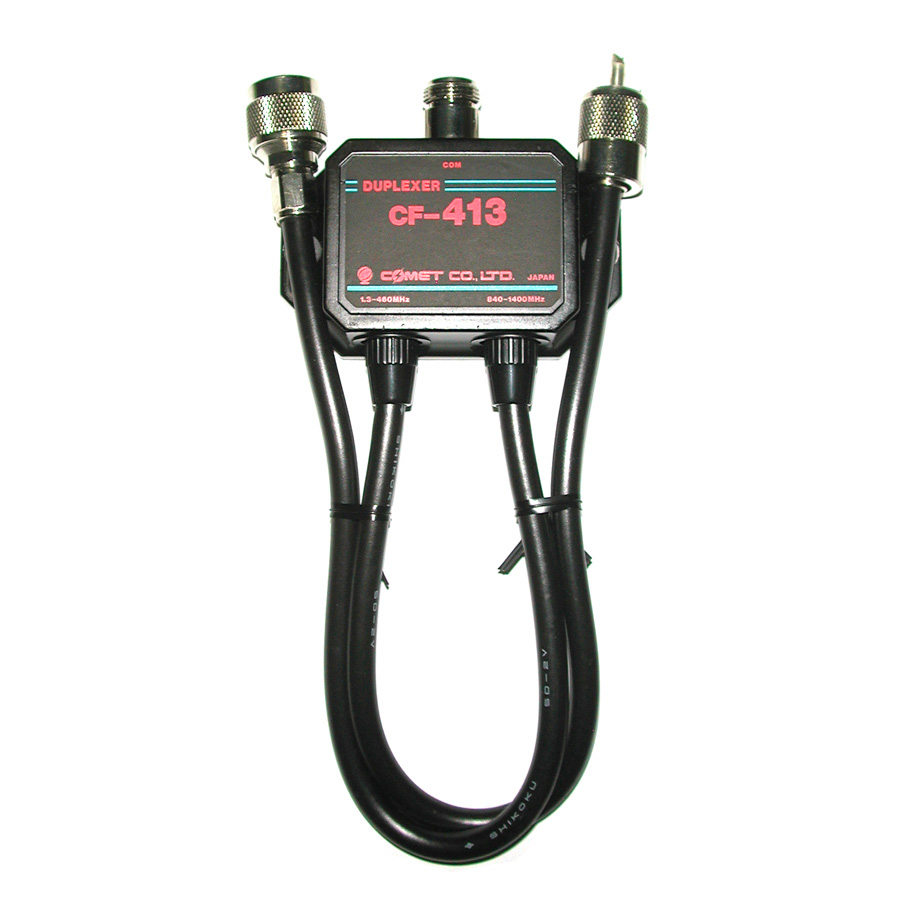

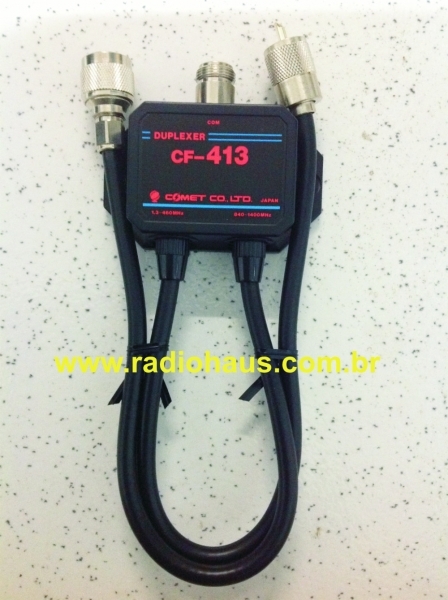

CF-413B Duplexer, 1.3-460 MHz Low Pass, 840-1,400 MHz High Pass

Comet

US$ 52,90
This product will be shipped from: BRAZIL (International shipping restrictions may apply). Sold and shipped by Radiohaus Brazil
Comprar
Indicar produto
Dúvidas?
Aumentar fonte Diminuir fonte

CF-413B Duplexer, 1.3-460 MHz Low Pass,

840-1,400 MHz High Pass

If you are in need of splitting off your HF, VHF, or UHF signals, then Comet Duplexers are what you are looking for.

Sometimes referred to as combiners or splitters, these duplexers are basically band-pass filters, simultaneously passing RF in both directions through the common connector, while the band-pass filters provide a high degree of isolation between ports.

Additional information:

* TX and RX from two radios at the same time into a dual-band antenna.
* Combine a dual-band radio with separate outputs into a dual-band antenna.
* Separate a single connector duplexed radio into separate antenna systems.
* Allow a single coax run into two antennas at the top of the tower, and two radios at the bottom by using a duplexer at both ends of the coax run, avoiding additional coaxial cost and weight.



Low Pass Frequency Coverage:1.3-460 MHz
High Pass Frequency Coverage:840-1400 MHz
Low Pass Loss:0.25 dB
High Pass Loss:0.4 dB
Low Pass PEP:500 watts
High Pass PEP:200 watts
Mix Connector:Type N, female
Low Pass Port Connector Type:UHF male, PL-259
High Pass Port Connector Type:Type N, male
