Avionics TDR Complete Kit (6021-5154) Time Domain Reflectometer

AEA Technology

US$ 4.699,00
This product will be shipped from: USA (International shipping restrictions may apply). Sold and shipped by Radiohaus America
Comprar
Indicar produto
Dúvidas?
Aumentar fonte Diminuir fonte

Avionics TDR Complete Kit (6021-5154)

Time Domain Reflectometer

Fault locating for: Opens, shorts, bridged taps, split and resplit pairs, water, chaffing damage, coax crimps and splices, shunt faults, series resistive faults, splitters.  Any impedance or loop resistance affecting fault.

Micro Fault locating: Two modes designed to pin-point small faults easy to miss on any full TDR trace.  Particularly on long coax cables.

Stores: 32 Traces and instrument setups. 64 Cable types with their impedance and velocity.

Help: Both a Setup Wizard for step-by-step guided startups and one-button context sensitive help for all menus and functions.The E20/20 Step TDR is guaranteed to save time and money by quickly and accurately locating even small cable faults and by not chasing cable faults that don't exist.View the applicable data sheet below for more details and key specifications.





Avionics TDR Complete Kit

Model: Avionics TDR Complete Kit
Part Number: 6021-5154
Included items: Hard carrying case,Belt case, AC adapter, USB cable, basic guide, quick start guide,Calibration Certificate (with data), RJ45-to-RJ45 Cat5E cable, BNC(m)-to-BNC(f) 50Ohm coax cable, BNC-to-alligator Clips, Aircraft cable/connector leads BNC-to-Pins sizes 12,16,20, & 22, and BNC-to-S
ockets sizes 12, 16, 20, and 22.

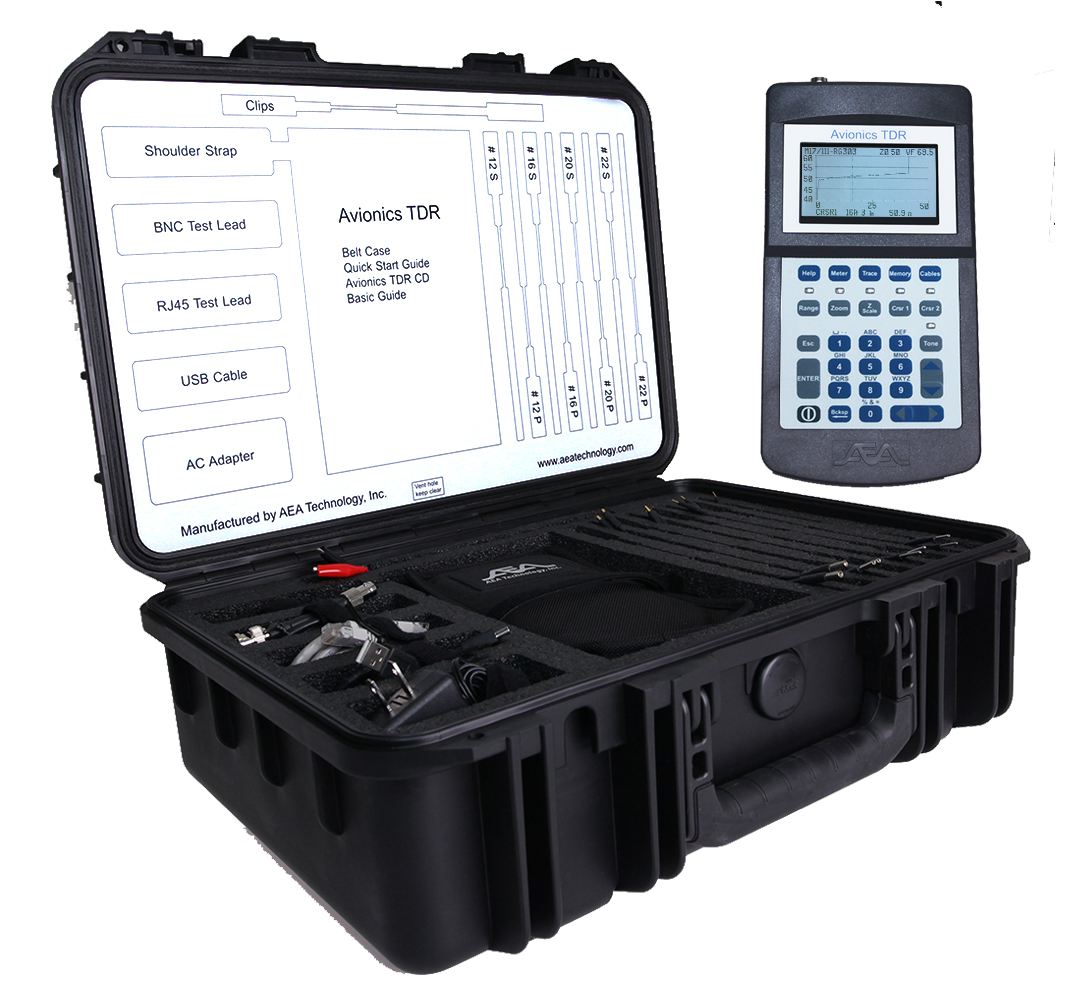

Designed specifically for aviation applications the Avionics TDR Complete Kit is contained in an ATA-3000 Class 1 carrying case.  The custom foam is designed to hold the E20/20 TDR and accessories securely to prevent FOD and the lid label provides a clear indication of what item should be in every foam cut-out location. The E20/20 TDR has both BNC and RJ-45 test ports and an aviation customized cable list in the memory. The list provides quick access to a variety of common aviation coax, twisted pair and single-wires' impedances and velocity factors.   Avionics Kit Data Sheet View the Avionics Kit data sheet below for details and specifications.

























 FEATURES

Ranges: from 0-10ft (0-2m) to 20,000ft (5Km)
No dead zones on any range setting
Range Zoom on Cursor
Impedance zoom using Z Scale
Cursor reading down to ±½ inch (±8mm)
Cable List with up to 64 cable types
BNC and RJ45 connectors standard
Setup Wizard - step-by-step start up assistance
Context sensitive help
Cell phone style alpha-numeric entry pad
Keypad LED indicators for active function
Cable toning - coax or wire pairs
Stores 32 traces with name, date & time
Rechargeable NiMH AA cells (included)
ETDR PC Vision software (included)
Kit Case is ATA rated and MIL-STD tested



BENEFITS

Test coax, twisted pairs, or single wires using same TDR.
Wireto-wire or wire to airframe
Accurate and clear trace indication of faults
Secure, but convenient accessory access
More advanced features to aid troubleshooting
Save, upload, print or email TDR’s traces
Find faults other TDRs miss
Clear wiring trouble more quickly with less testing
Customize, upload, and download Cable Lists, PC-to-TDR
Saved traces are also saved setups for recall
Noise detection and noise filtering
Locate coax or pairs quickly using Tone Function
Setup Wizard makes starting use easy and helps train new users
“Belt Friendly” TDR size and only 2.2 lbs (1Kg)
