VIA Bravo II XF - 100KHz-to-200MHz Vector Network Analyzer (6014-5300)

VIA Bravo II XF - 100KHz-to-200MHz Vector Network

Analyzer (6014-5300)

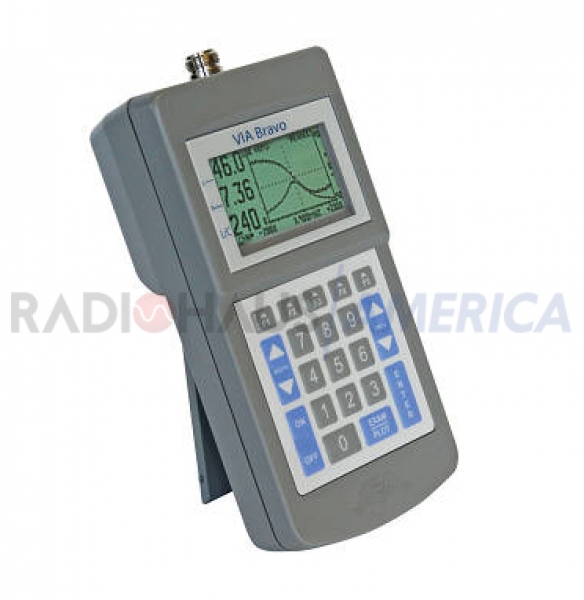

The VIA Bravo is a handheld Vector Impedance Analyzer for measuring the impedance and resonant frequencies of circuits and antennas. The VIA Bravo has the capability of providing accurate measurements and sweep displays of impedance, reactance, resistance, phase angle, return loss and SWR. The VIA Bravo’s testing functionality, combined with its 100 kHz to 200 MHz frequency range, make it a versatile tool for many service applications including areas such as MRI, wireless telemetry, 2-way radio, aviation, and Radio Frequency Identification (RFID).

The VIA Bravo Analyzer comes in three versions with the capability of simultaneously displaying two separate measurement graphs and the respective scales. The versions include the standard S11 port Bravo model, the S11 and S21 ports Bravo II model, and the Bravo II XF (eXtra Fine frequency resolution) model.

The Bravo PC Vision Software application, included with the VIA Bravo, provides the user with the capability of remotely operating the VIA Bravo through a serial port connection while viewing real time results on a PC. A Smith Chart display of the measured circuit impedances is also available. The PC Vision Software makes the capture, storage, and printing of documentation and reports easy. The VIA Bravo has proven to save time, improve on reliability and quality, and reduce service wait time.

VIA Bravo II XF Analyzer...............6014-5300

With both S11 and S21 testing ports.

Includes all the same measurements as in the VIA Bravo II plus Extra-Fine frequency tuning.
