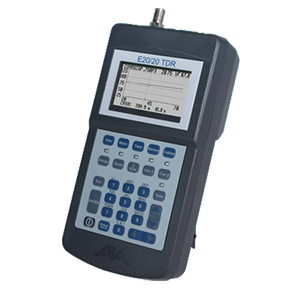

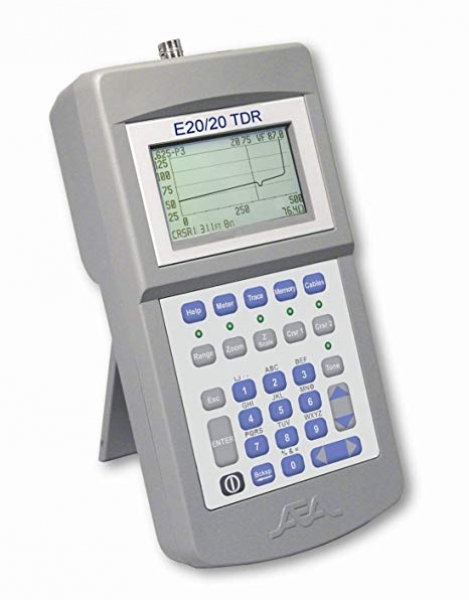

E20/20 Step TDR (6021-5000) Time Domain Reflectometer

E20/20 Step TDR (6021-5000)
Time Domain Reflectometer

Fault locating for: opens , shorts, bridged taps, split and resplit pairs, water, chaffing damage, coax crimps and splices, shunt faults, series resistive faults, splitters.  Any impedance ro loop resistance affecting fault.

Micro Fault locating: Two modes designed to pin-point small faults easy to miss on any full TDR trace.  Particularly on long coax cables.

Stores: 32 Traces and instrument setups. 64 Cable types with their impedance and velocity.

Help: Both a Setup Wizard for step-by-step guided startups and one-button context sensitive help for all menues and functions. The E20/20 Step TDR is guaranteed to save time and money by quickly and accurately locating even small cable faults and by not chasing cable faults that don't exist.

Part Number: 6021-5000

Connector: N type.

Cable List: Broadcast. N-to-BNC Adapter & BNC to Alligator clips test lead

Included items: Soft Equipment case, Belt case, AC adapter, Vehicle charger, USB cable, N-to-BNC Adapter, BNC-to-Alligator Clips Test Lead, basic guide and quick start guide.
