AL-811H HF AMP, 800W, (4) 811A TUBES, US 120VAC

Ameritron

US$ 1.499,95
This product will be shipped from: USA (International shipping restrictions may apply). Sold and shipped by Radiohaus America
Comprar
Indicar produto
Dúvidas?
Aumentar fonte Diminuir fonte

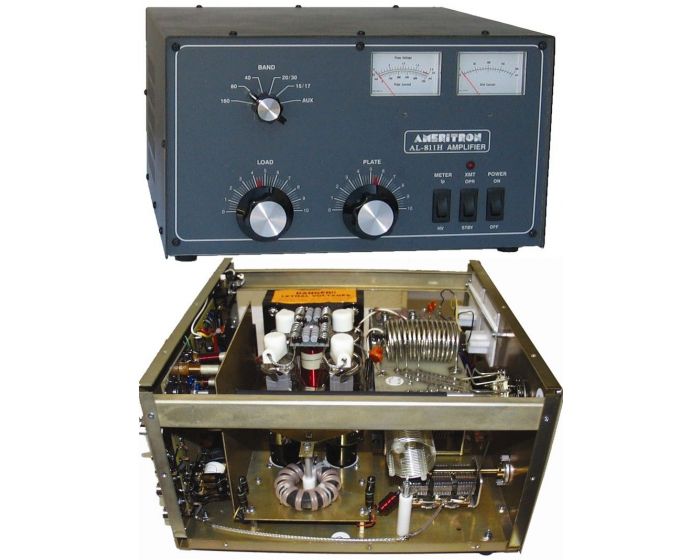

AL-811H HF AMP, 800W, (4) 811A TUBES, US 120VAC

Only the AMERITRON AL-811H gives you four fully neutralized 811A transmitting tubes. You get absolute stability and superb performance on higher bands that can’t be matched by un-neutralized tubes. You also get efficient full-size heavy duty tank coils, computer grade capacitors, heavy duty high silicon core power transformer, slug tuned input coils, operate/standby switch, transmit LED, ALC, dual meters, QSK compatibility with QSK-5 option and much more!



Ameritron AL-811 Variants
  600 W output
(3 x 811A tubes)
800 W output
(4 x 811A tubes)
800W output
(4 x 572B tubes)
US 120V AL-811 AL-811H AL-811HD
Export 220/240V AL-811X AL-811HX AL-811HDX
Export 220/240V CE certified AL-811XCE AL-811HXCE AL-811HDXCE
Export 120V w/10 Meters AL-811Y AL-811HY AL-811HDY

SPECIFICATIONS:

  • Output power: 800 Watts PEP, 600 Watts CW.
  • All Band Operation: Covers 160-15 Meters including WARC bands. Can be user modified for12 and 10 Meters.
  • Four 811A Tubes: Uses four rugged, fully neutralized low cost 811A PA tubes. • Vertical Tube Mounting: Prevents shorting of tube filament/grid, prolongs tube life.
  • Fully Neutralized: Improves stability and performance on higher bands.
  • Input Tune Circuit: Adjustable rear panel slug tuned input circuit.
  • ALC Control: Built-in adjustable ALC control.
  • Vernier Reduction Drives: Tuning and loading reduction drives make tuning smooth and easy.
  • Dual Illuminated Meters: Monitor vital operating functions.
  • Heavy Duty Power Supply: 17 pounds, high silicone steel core transformer and computer grade filter capacitor gives 1700 Volts high voltage at no load and 1500 Volts at full load. Multi-Voltage Operation: User selectable for 100/110/120/210/220/230 VAC operation. Shipped with transformer installed and wired for 120 VAC for domestic model or 240 VAC for export model.
  • Air-Cooled: Quiet pressurized ventilation keeps tubes safely cooled. QSK Compatible: Optional external electronic pin diode Transmit/Receive switch. QSK-5
  • Attractive Lexan front decal
  • One Year AMERITRON warranty.
  • Dimensions: 8 ¼" x 13 ¾" x 15 ½".
  • Operating Weight: 32 lbs.
  • Made in USA
