Model 75A - 3.5 to 30 MHz Mobile Antenna

Tarheel

US$ 639,00
Color:
This product will be shipped from: USA (International shipping restrictions may apply). Sold and shipped by Radiohaus America
Comprar
Indicar produto
Dúvidas?
Aumentar fonte Diminuir fonte

Model 75A - 3.5 to 30 MHz Mobile Antenna

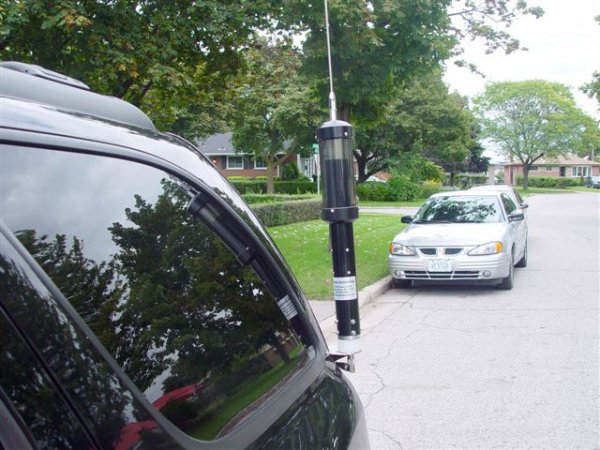

When properly installed on your vehicle the Model 75 "Stubby" will provide continuous coverage from 3.5 to 30 MHz with a 6' whip.

The Model 75 gives you low profile like the Little Tarheel II and the larger coil like the larger Tarheels. The lower mast of the Model 75 is 16" in height like the Little Tarheel II but has the 2" coil like the Model 300. So, we nicknamed it "Stubby".

All of our antennas come with the sensors already pre-installed so if you decide to add one of the auto controllers (SDC-100B Simple Controller, SDC-102 Programmable Controller, Turbo Tuner) now or later everything is ready.

What makes our antennas stand above the rest is all of our CNC machined components are either aircraft aluminum or stainless steel and blueprinted, meaning you can take 100 antennas apart and mix up the parts then reassemble them and they all work the same. Our coil form is approximately 2" in diameter and made of fiberglass. The other antenna builders know fiberglass is better but they choose not to use it because of the expense and difficulty in machining. The decoupler we use is CNC machined for tight tolerances with custom fingerstock designed to contact 5 turns of coil all the time with over 25 lbs. of combined contact pressure. With this design you can run up to 250 watts P.E.P trouble free.

The Pittman 12 volt commercial grade gear motor is very durable and very quiet while receive tuning.

Our weather shield is made of LexanTM. This is the same stuff used on racecar windshields and even used to make bulletproof windows.

The Model 75 comes in your choice of colors (Black, White, Red or Silver). And folks this is not spray paint in a can. It's the Dupont Imron 5000 or Powder Coat Paint System. With this you get a finish that looks as glossy and last as long as the paint on a new vehicle.

That's just some of the effort that goes into a Tarheel Antenna. You won't be disappointed,  I GUARANTEE IT!

The antenna is a plug & play system. Included is the antenna, manual switch box, 20 ft. of control cable, ferrite decoupling core, 3/8-24 stud, fuseholder and fuse.

The warranty is simple: For the 1st 30 days if for any reason you are not completely satisfied, return the antenna for a full refund less the shipping charges. The antenna has a ONE YEAR NO MATTER WHAT WARRANTY to the original owner. If for any reason (other than damage due to negligence, improper use, use of Non-recomended Controllers or unauthorized disassembly) your Tarheel Antenna fails to perform due to quality or workmanship Tarheel Antennas, Inc. will at our discretion either repair or replace at no charge for parts or labor. Shipping charges are your (the customer's) responsibility to and from Tarheel Antennas' repair shop.

What is included:
Model 75A Antenna
6 ft. Stainless Steel Whip
Manual Control Switch
20 ft. Control Cable
Ferrite Core
Fuse Holder & Fuse
Dielectric Compound
Antenna Manual

Lower Mast Length -- 16 in.
Frequency Coverage with 6ft. whip -- 3.5 to 30 MHz
Power Rating -- 250 watts P.E.P.
Typical SWR -- 1.5 to 1 or less
Total Height with 6ft whip at 30 MHz -- 7'6"
Total Height with 6ft whip at 3.5 MHz -- 8'
Weight -- 5.5 lbs.
