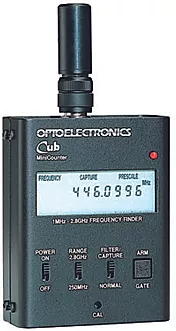

CUB - Frequency Counter

CUB FREQUENCY COUNTER

Optoelectronics Cub Frequency Counter is ideal for any two-way communication test application or general purpose frequency measurements. If you're looking for a low cost handheld frequency counter, look no further than the Optoelectronics Cub Frequency Counter.

Features

1MHz - 2.8GHz frequency range

9 digit LCD display for better visibility and longer battery life

6 hour discharge time from full charge

8 selectable gate times

High speed .0001 second gate time

1MHz - 250MHz direct count capability for high resolution

Patented Digital Filter eliminates false counts

Patented Auto Capture locks frequency displayed until cleared

Direct and Pre-scaled ranges

Standard BNC antenna connection

3.7"high x 2.75"wide x 1.2"deep

All metal casing

1 year parts and labor warranty

Supplied with NiCads and power supply

Technical Specifications

Frequency Range 1MHz-2.8GHz

Input Impedance 50 Ohm

Input Coupling AC

Max Input +15dBm (50mW)

Frequency Time Base 10MHz +/- 1ppm initial accuracy

Display 9 digit LCD

Size 3.7"H x 2.75"W x 1.2" D

Power Requirements 9-12VDC, 300-1000mA, center +

Battery Internal rechargeable 4 cell NiCd

Battery run time 6-8 hours on full char
