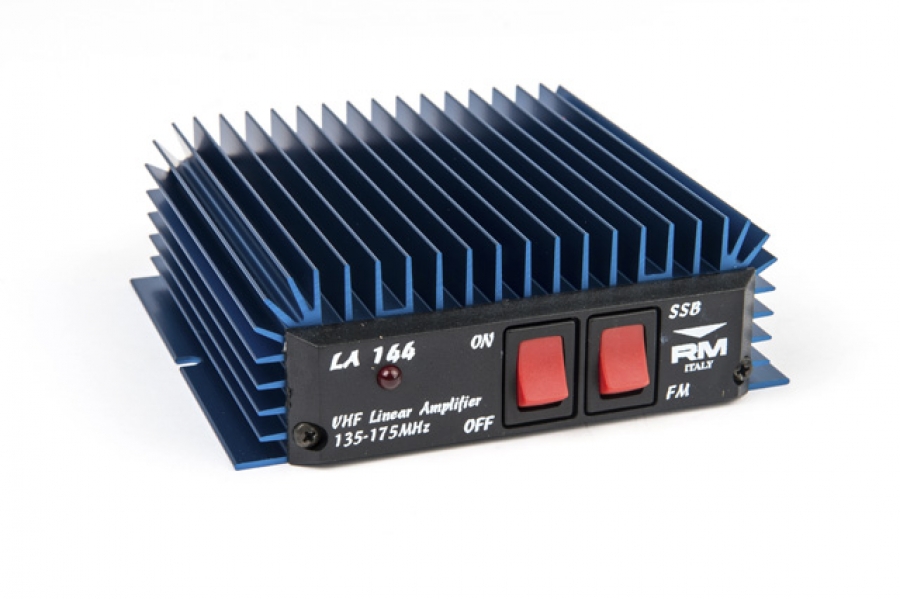

LA-144 Wideband VHF amplifier (135-175 MHz)

RM Italy

US$ 139,00
This product will be shipped from: USA (International shipping restrictions may apply). Sold and shipped by Radiohaus America
Comprar
Indicar produto
Dúvidas?
Aumentar fonte Diminuir fonte

This item is shipped worldwide from USA

The LA 144 is a wideband compact amplifier for VHF band, covering from 135-175 Mhz. Output is a nominal 60 Watts at full power (70 Watts Max)
Input Drive from 0.5 Watt to Maximum of 4 watts, ideally suited to low power handheld transceivers. Output power depends both on input power and frequency of use. The graph illustrates the relationship between two paramenters

  • Works perfect with 2 meter band handheld radios
  • Frequency - 135 - 175 mhz
  • Max Input Current - 10 A
  • Power Supply - 12 - 14Vdc
  • Input Power : 0.5 - 5 Watts Max
  • Output power - 70 Watts Max
  • Output power SSB - 200 W pep Max
  • Mode - AM-FM-SSB-CW
  • Fuse - 10 A
  • Size - 120x125x40 mm



  • Works perfect with 2 meter band handheld radios
  • Frequency - 135 - 175 mhz
  • Max Input Current - 10 A
  • Power Supply - 12 - 14Vdc
  • Input Power : 0.5 - 5 Watts Max
  • Output power - 70 Watts Max
  • Output power SSB - 200 W pep Max
  • Mode - AM-FM-SSB-CW
  • Fuse - 10 A
  • Size - 120x125x40 mm
